Description

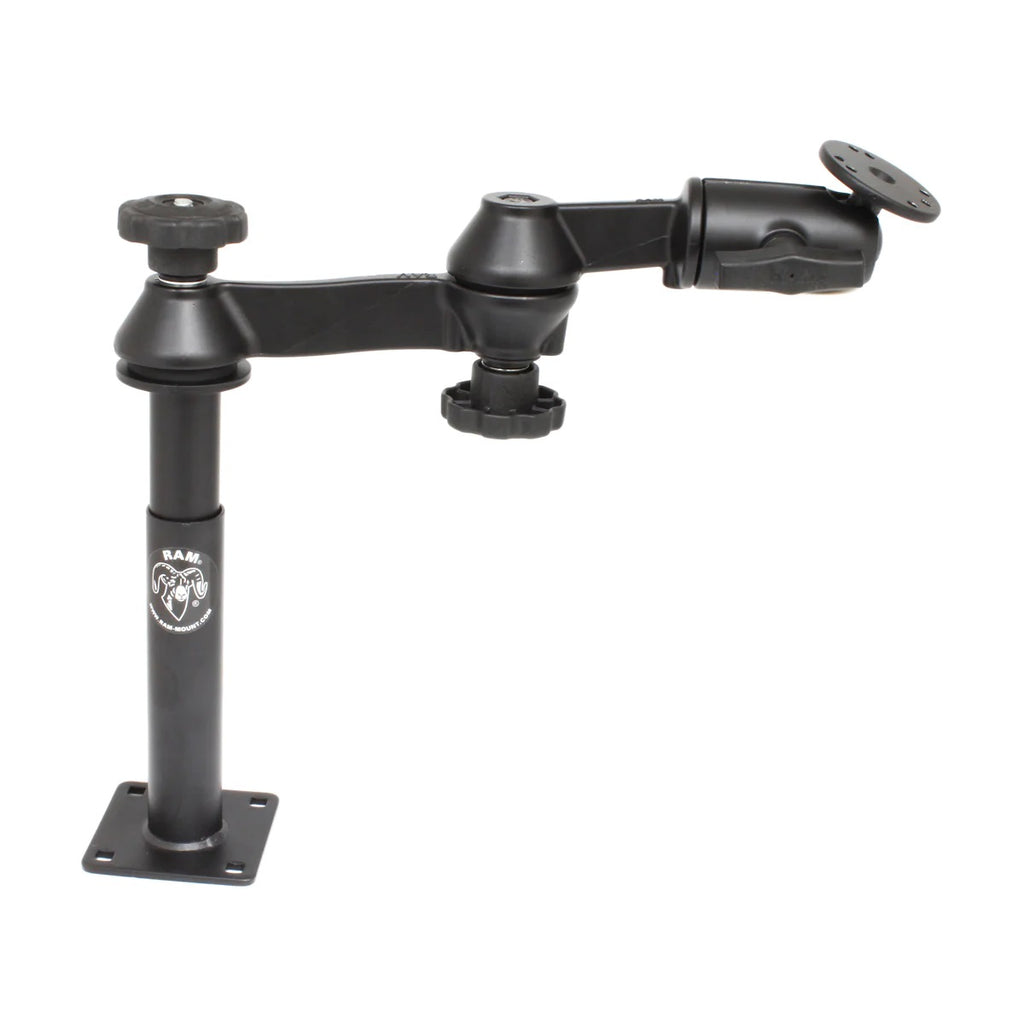

The RAM® Tele-Pole™ Vehicle Mount with Double Swing Arms and AMPS Round Plate is a rugged, fully adjustable mounting solution designed for professional vehicle installations. Built for demanding environments, this system provides exceptional stability, precise height adjustment, and flexible viewing angles for tablets, monitors, radios, and other mounted electronics.
The telescoping Tele-Pole™ design combines a 7" lower female pole with a 4" upper male pole, allowing smooth height adjustment by turning the top-mounted knob. Once locked, the pole becomes a rigid support ideal for fleet vehicles, work trucks, emergency vehicles, and industrial applications.
A 12" double swing arm and C-size (1.5") rubber ball provide multiple points of articulation, enabling effortless tilt, rotation, and positioning while keeping your device firmly secured—even in high-vibration environments.
Manufactured from powder-coated, marine-grade aluminum and steel, this mount is engineered for long-term durability. As an Authorized RAM Mounts Dealer, Gadget Mounts ensures you receive genuine RAM components backed by a manufacturer lifetime warranty.
Key Features
-
Adjustable Tele-Pole™ system with 7" lower female pole and 4" upper male pole
-
Easy height adjustment with top-mounted locking knob
-
Double swing arm with two 6" sections (12" total length)
-
C-size 1.5" rubber ball for enhanced load capacity and vibration damping
-
2.5" round plate with universal AMPS hole pattern
-
Additional square plate with 75mm x 75mm VESA pattern
-

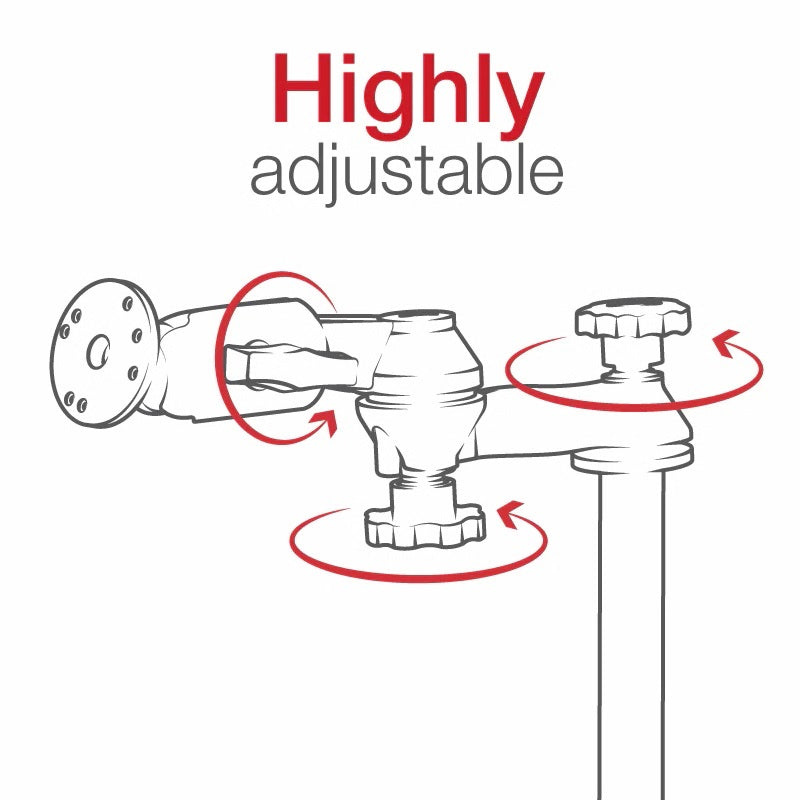

Multiple articulation points for optimal viewing angles
-
Designed for professional vehicle and fleet installations
-
Constructed from powder-coated marine-grade aluminum and steel
Ideal Applications
-
Fleet and service vehicles
-
Law enforcement and emergency response vehicles
-
Commercial trucks and vans
-
Industrial and warehouse vehicles
-
Tablet, display, radio, and equipment mounting solutions
What’s Included
-
Adjustable Tele-Pole™ assembly
-
Double swing arm
-
2.5" round AMPS plate
-
Assembly hardware:
-
(4) 5/16"-18 x 1" carriage bolts
-
(4) 5/16"-18 hex nuts
-
(4) 5/16" flat washers
-
(4) 5/16" split lock washers
-
(4) rubber caps
-
Technical Specifications
Minimum Height: 12.3"
Maximum Height: 15.3"
Swing Arm Length: 12" total
Ball Size: C Size (1.5")
Product Weight: 6.5 lbs
Mounting & Hole Patterns
-
Tele-Pole Hole Pattern: 2.625" x 2.625"
-
Round Plate Hole Patterns:
-
4-Hole AMPS: 1.181" x 1.496"
-
3-Hole 120°: 1.812" diameter
-
Plate Dimensions
-
Round Plate: 2.5" diameter
-
Lower Pole Base Plate: 3.5" x 3.5"
-
VESA Plate: 3.625" square (75mm x 75mm pattern)
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-VP-SW1-47
Warranty: Manufacturer’s Lifetime Warranty
