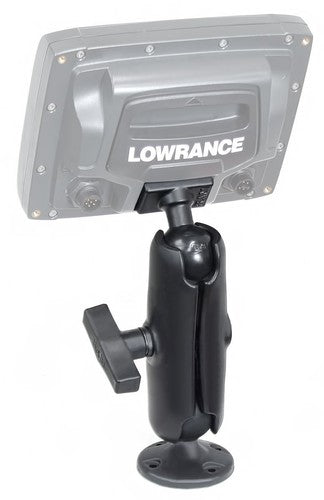

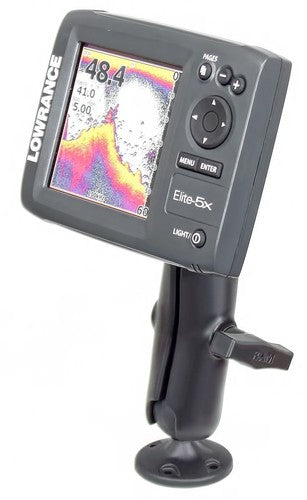

Secure your fishfinder with confidence using the RAM® 1.5" Ball Composite Mount with Quick-Release Adapter, engineered for select Lowrance Elite, Elite Ti, HOOK, and MARK series units. This rugged mounting system is designed for harsh marine environments and delivers exceptional stability with fast, tool-free removal.
The integrated quick-release adapter inserts directly into the back of compatible Lowrance units, allowing you to remove or transfer your fishfinder in seconds—ideal for trailering, storage, or multi-boat setups. At the core of the system is RAM’s patented 1.5" rubber ball and socket technology, providing near-infinite adjustability so you can achieve the perfect viewing angle even in rough conditions.
Constructed from marine-grade aluminum and high-strength composite, this mount is built for serious on-the-water use.
As an Authorized RAM Mounts Dealer, Gadget Mounts supplies genuine RAM mounting solutions backed by RAM’s lifetime warranty.
Features
- 2.5" round base with universal AMPS hole pattern for flat surface mounting
- Medium double socket arm with dual adjustment points for precise positioning
- Quick-release adapter inserts directly into the back of select Lowrance units
- 1.5" (C Size) RAM® rubber ball and socket system for vibration damping
- Designed for rugged marine use and harsh environments
- Made in the USA and backed by a lifetime warranty
Specifications
Ball Size: C Size (1.5")
Overall Height (Fully Straight): 7.35"
Socket-to-Socket Length: 4.66"
Overall Arm Length: 5.69"
Base Diameter: 2.5"
Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120-Degree: 1.812" Diameter
Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
Materials:
- Marine-grade aluminum
- High-strength composite
Product Weight: 0.86 lb
Important Notes
This adapter is not compatible with the standard Lowrance Elite-7 (non-Ti models).
Drill-down mounting hardware is not included. Hardware selection depends on the mounting surface and whether back-side access is available. Common screw sizes include #8, #10, M4, and M5.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAP-101U-LO11
Warranty: Manufacturer’s Lifetime Warranty
