Description
The RAM Mounts USB-C Hardwire Charger is a 10-30V vehicle power component designed to deliver up to 25W of USB-C Power Delivery output for compatible GDS® vehicle setups. It is built for customers who need a hardwired charging solution in work vehicles, fleet vehicles, forklifts, service trucks, marine environments, and other powered mounting applications.

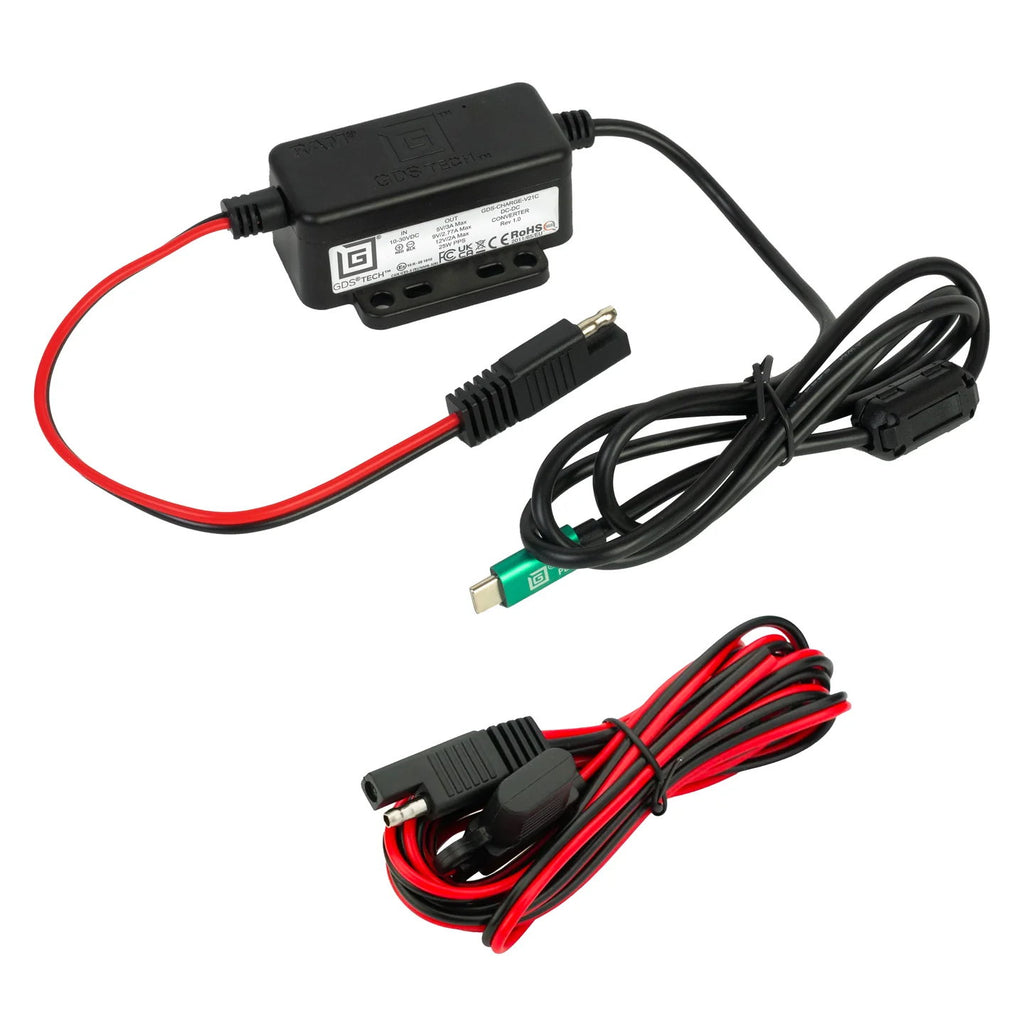

This charger connects directly to a vehicle power source using bare wire input and provides a USB Type-C male output connection for compatible GDS® charging systems. Its modular design helps reduce rewiring when equipment is upgraded by allowing charger components to be disconnected and replaced more easily.
This is a power component only and is not a complete mount or device holder. It should be used as part of a compatible GDS® charging or vehicle mounting setup.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features:
• Hardwire USB-C charger for compatible RAM GDS® vehicle power setups
• Accepts 10-30VDC input for use in vehicle and mobile equipment applications
• Provides up to 25W of USB-C Power Delivery output
• Bare wire input connection allows direct connection to a vehicle power source
• Modular GDS® design helps simplify future charger upgrades without full rewiring
• Built-in electrical protection including over voltage, over current, and short circuit protection
• Part of the GDS® Ecosystem™ for keeping devices protected, connected, and charged
Use Cases & Compatibility:
This charger is used to provide hardwired USB-C power in compatible RAM GDS® vehicle solutions. It is suitable for fleet vehicles, service vehicles, forklifts, mobile workstations, industrial equipment, and other applications where a clean, direct-to-power charging setup is preferred over a plug-in adapter.
The charger includes a bare wire input connection and a USB Type-C male output connection. It is intended for compatible GDS® charging systems and should be matched to the device holder, dock, or powered mounting setup being used.
Specifications:
Product Type: USB-C Hardwire Charger
Input Voltage: 10-30VDC
Output Voltage: 5-12VDC
Power Output: 25W
Output Current: 2.5A max
Input Connector: Bare Wire
Input Cable Length: 0.2 meters
Output Connector: USB Type-C Male
Output Cable Length: 1 meter
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Product Weight: 0.45 lb
Regulatory Protection:
• Over Voltage Protection
• Over Current Protection
• Short Circuit Protection
• SAE J-1113-5a Load Dump / Transient Voltage
• WEEE Compliance
• RoHS Compliance
Certifications: FCC, CSA, CE, UKCA, RCM, e-Mark
Included Components: USB Type-C male hardwire charger
Brand and Warranty:
Brand: RAM Mounts
Part Number: RAM-GDS-CHARGE-V21CU
Warranty: Manufacturer’s 3-year warranty
