Description

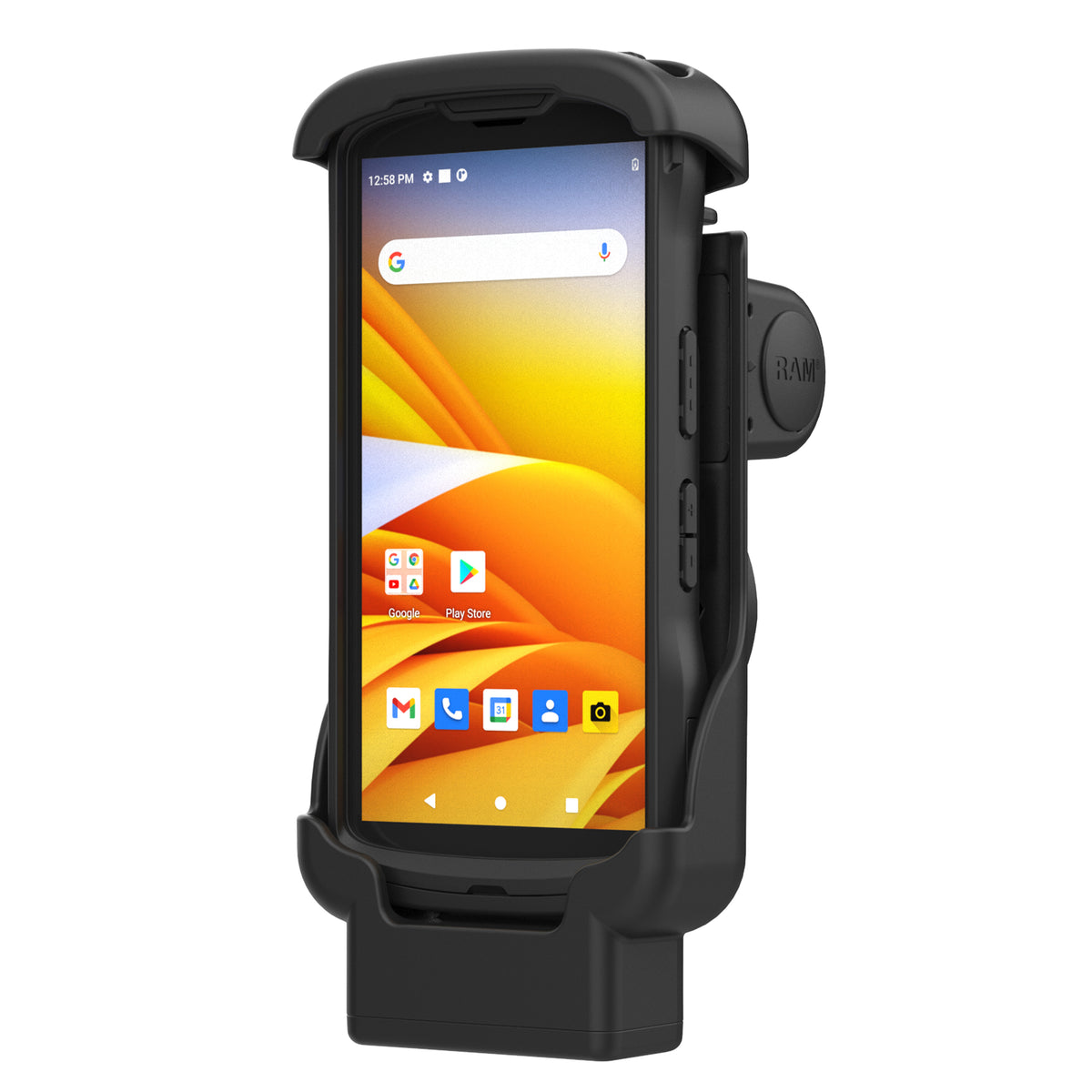

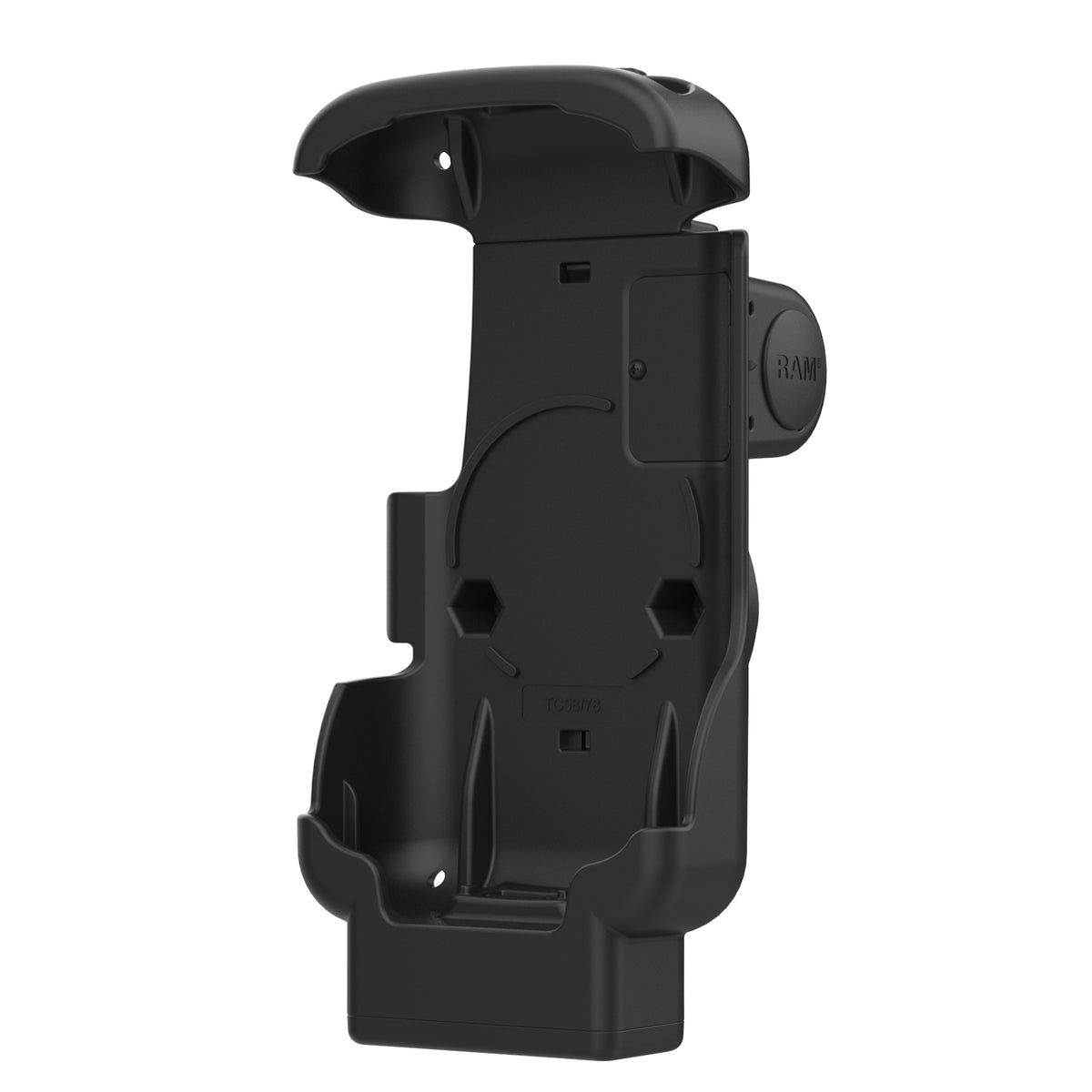

The RAM Form-Fit Dock for Zebra TC53 & TC58 (RAM-HOL-ZE17-NP-2U) is a spring-loaded, non-powered docking station designed to securely hold Zebra TC53 and TC58 rugged handheld computers. Its form-fit design accommodates either model with or without the Zebra rugged boot, offering flexible deployment options for commercial and industrial applications.

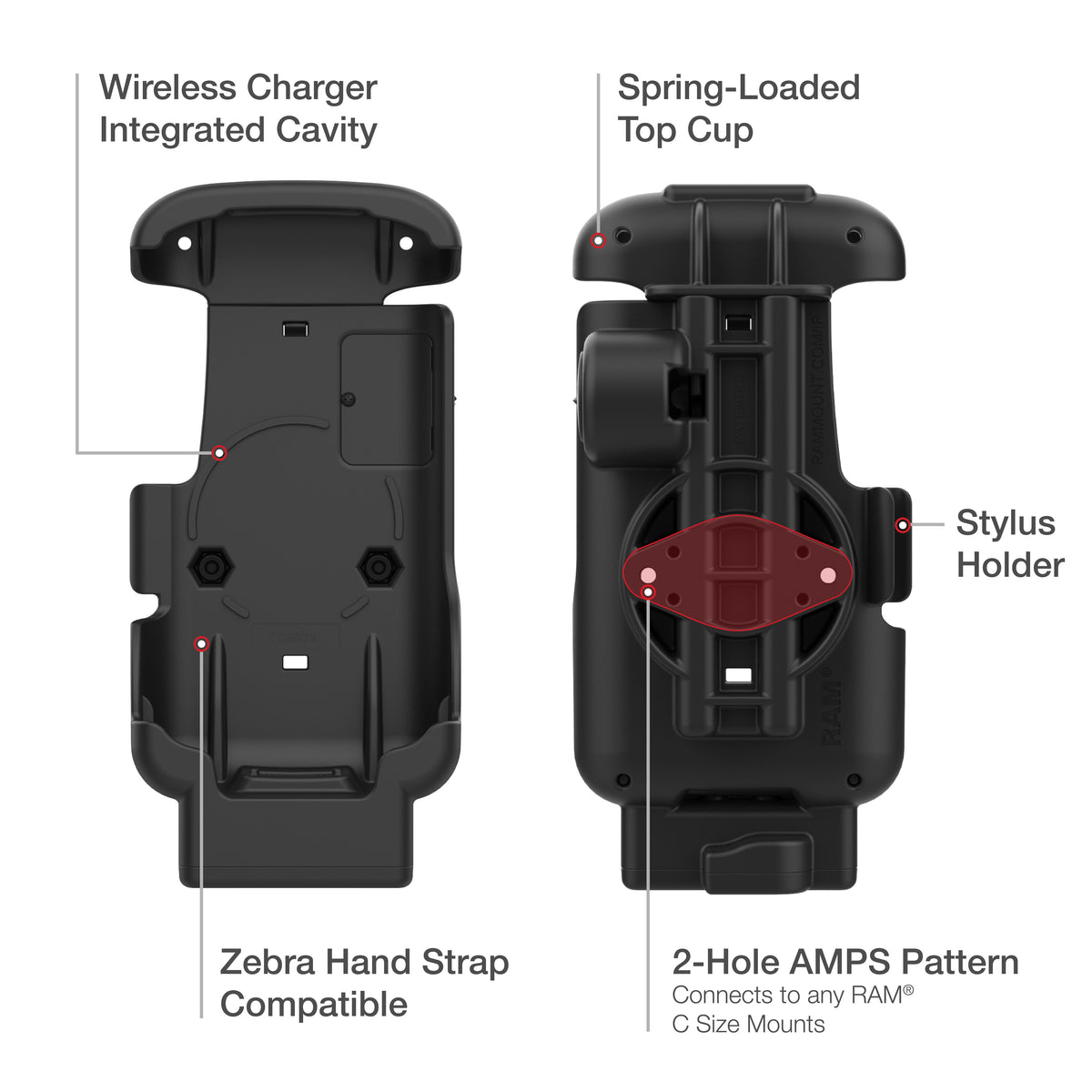

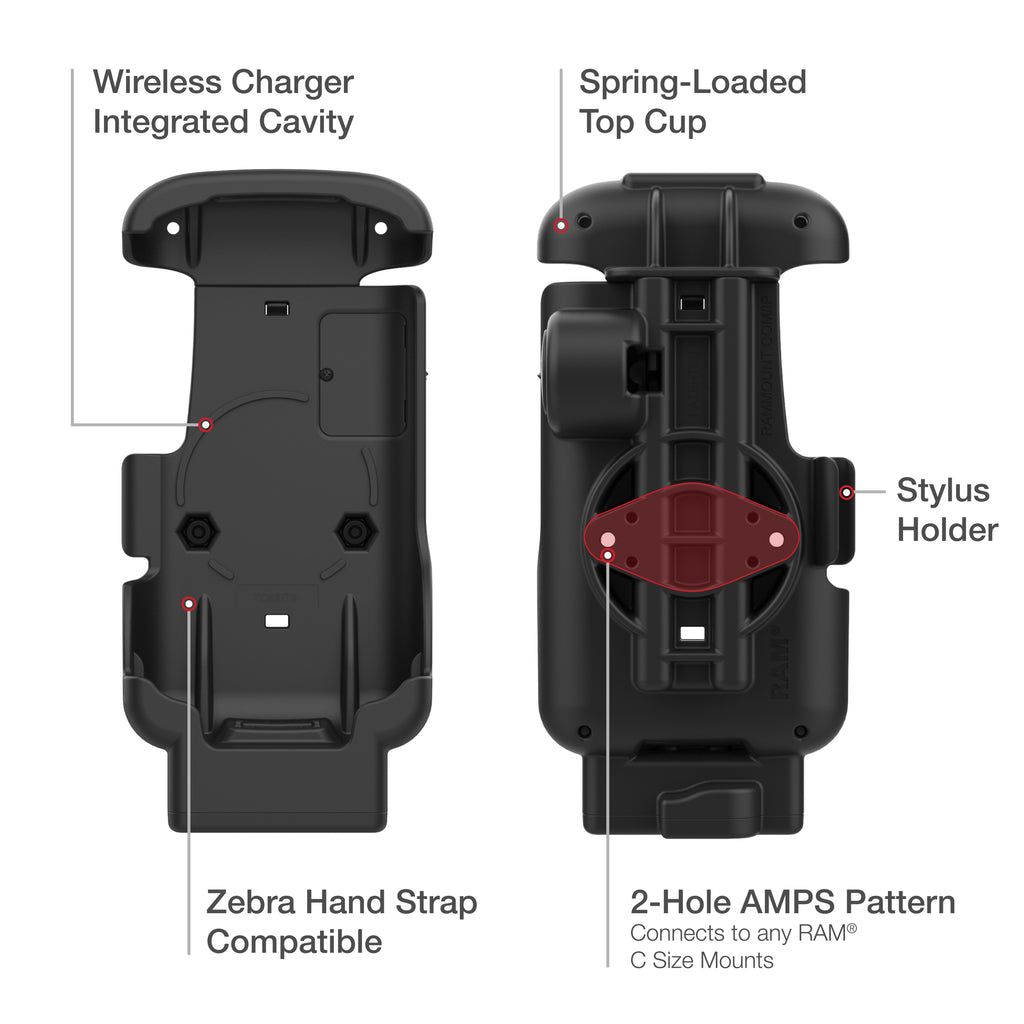

The dock features an integrated stylus holder, maintains access to the device's speaker and microphone, and accommodates the Zebra hand strap accessory. An integrated cavity accepts an optional RAM wireless charger, sold separately. The 2-hole AMPS mounting pattern allows attachment to compatible RAM B Size and C Size mounting systems.
Key Features
-
Form-Fit Dock: Designed specifically for Zebra TC53 and TC58 rugged handheld computers.
-
Spring-Loaded Retention: Securely holds the device while allowing convenient insertion and removal.
-
Non-Powered Configuration: Provides physical device retention without integrated charging.
-

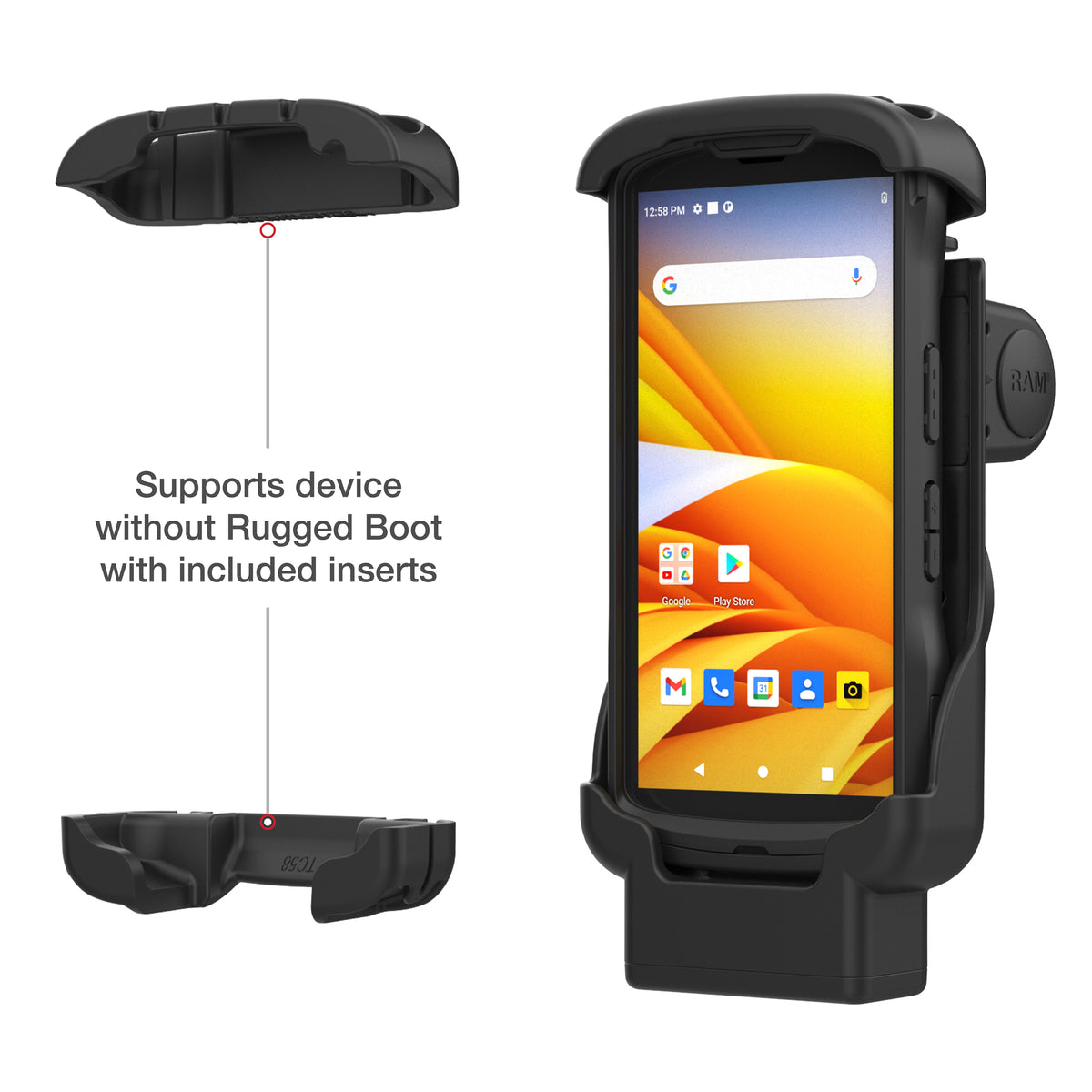

Rugged Boot Compatibility: Accommodates either device with or without the Zebra rugged boot.
-
Optional Wireless Charger Accommodation: Integrated cavity accepts a compatible RAM wireless charger, sold separately.
-
Integrated Stylus Holder: Snap-in storage keeps a stylus accessible when not in use.
-
Device Accessibility: Maintains access to the speaker and microphone while the device is docked.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Supports compatible RAM B Size (1") and C Size (1.5") 2-hole AMPS diamond bases.
-
Durable Construction: Manufactured from high-strength composite material.
Use Cases & Compatibility
Designed for Zebra TC53 and TC58 rugged handheld computers, this non-powered dock is suitable for warehouse operations, inventory management, material handling, logistics, fleet operations, and field service applications.
Device Compatibility:
-
Zebra TC53
-
Zebra TC58
-
Compatible with or without the Zebra rugged boot
-
Accommodates the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
Compatible RAM B Size (1") diamond ball bases
-
Compatible RAM C Size (1.5") diamond ball bases
-
Compatible RAM double socket arms and mounting components
Optional Wireless Charging:
-

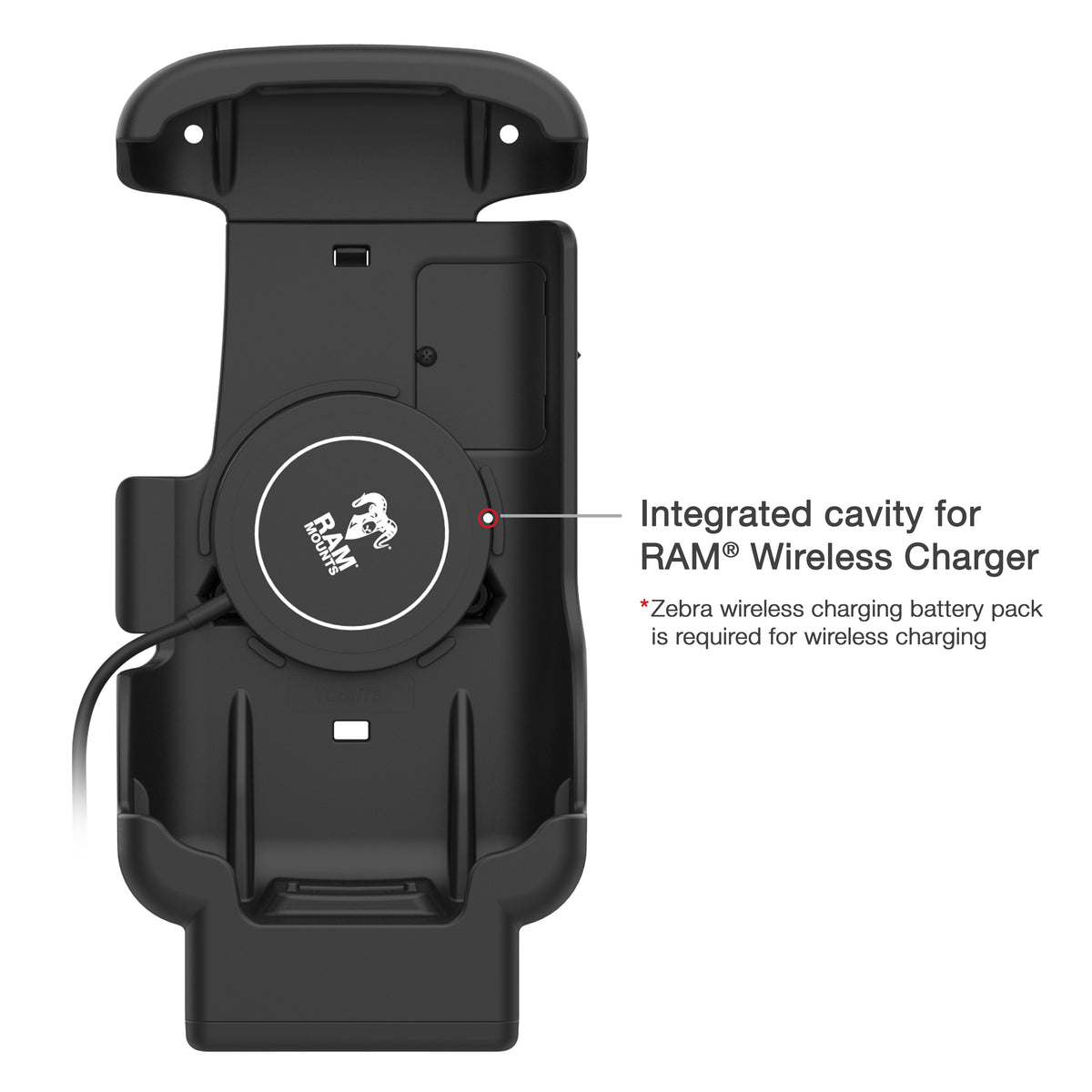

Integrated cavity accepts a compatible RAM wireless charger, sold separately.
-
To use the optional RAM wireless charger, the Zebra device must have the Zebra wireless charging battery pack installed.
This dock is non-powered as supplied. The optional wireless charger, Zebra device accessories, and RAM mounting components are sold separately.
Specifications
-
Compatible Devices: Zebra TC53, TC58
-
Dock Type: Spring-loaded, form-fit, non-powered
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Wireless Charger Accommodation: Integrated cavity for optional RAM wireless charger
-
Material: High-strength composite
-
Product Weight: 0.67 lb
What's Included
-
(1) RAM Form-Fit Dock for Zebra TC53 & TC58
-
(1) Top cup insert
-

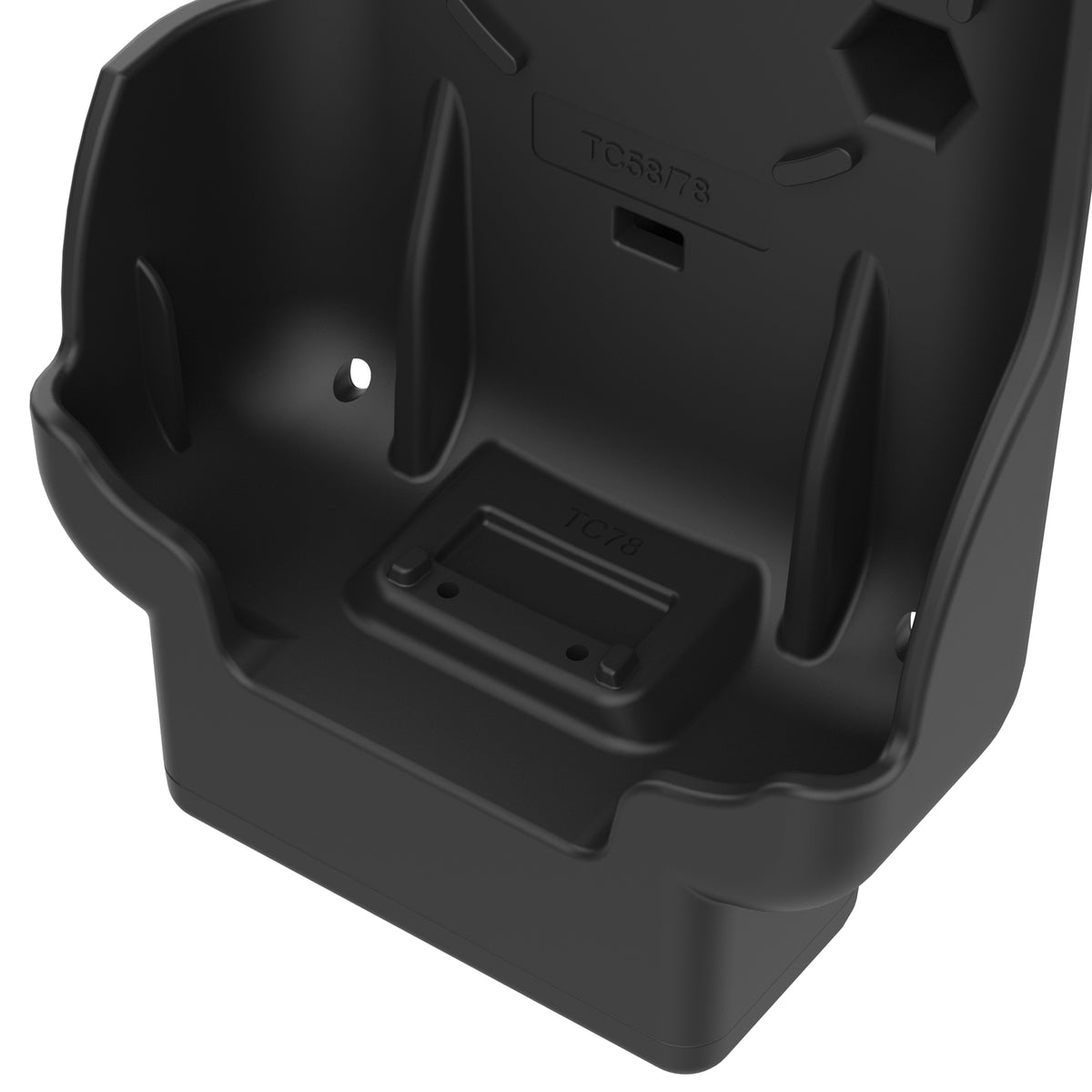

(2) Bottom cup insert options
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17-NP-2U
Warranty: Manufacturer's lifetime warranty
