Description

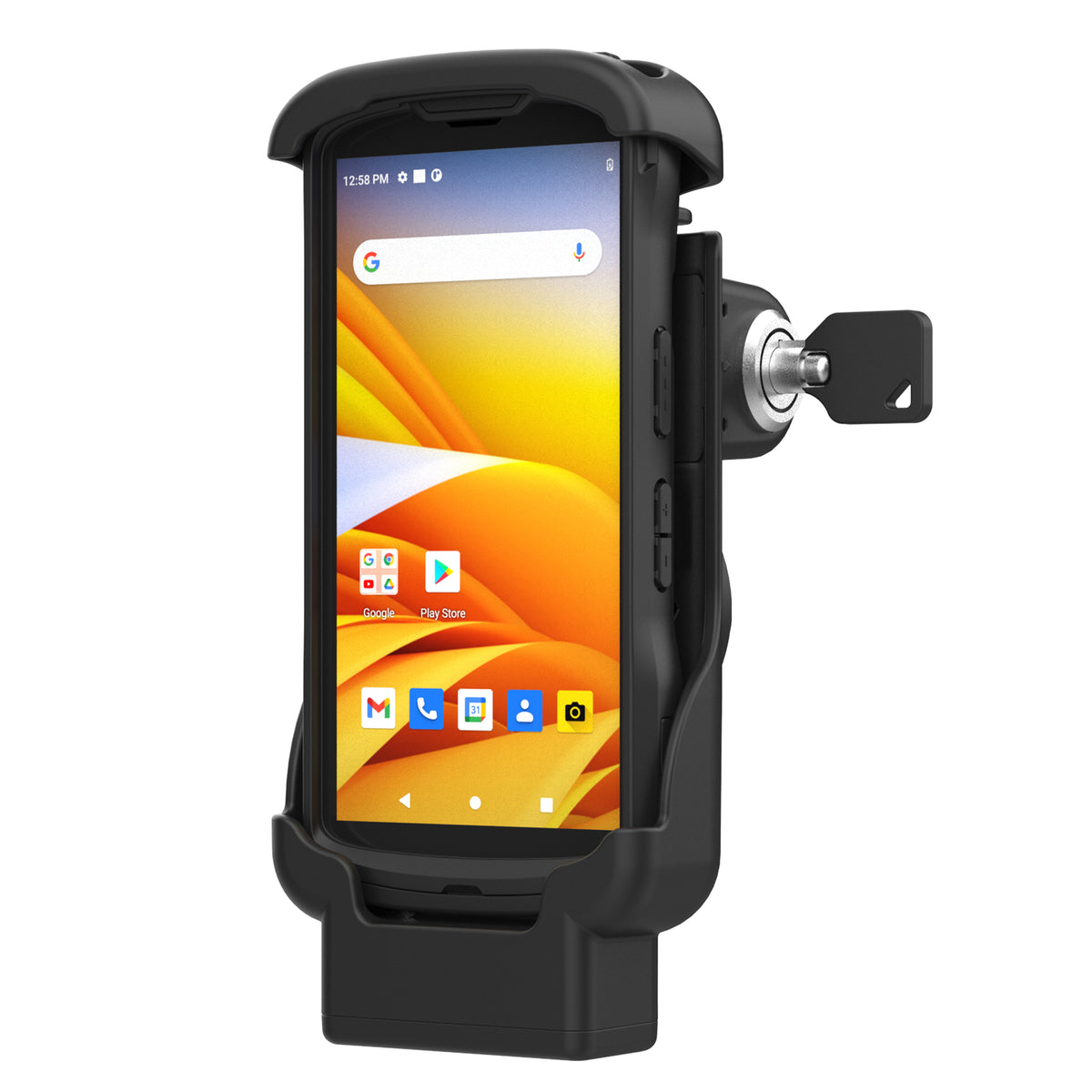

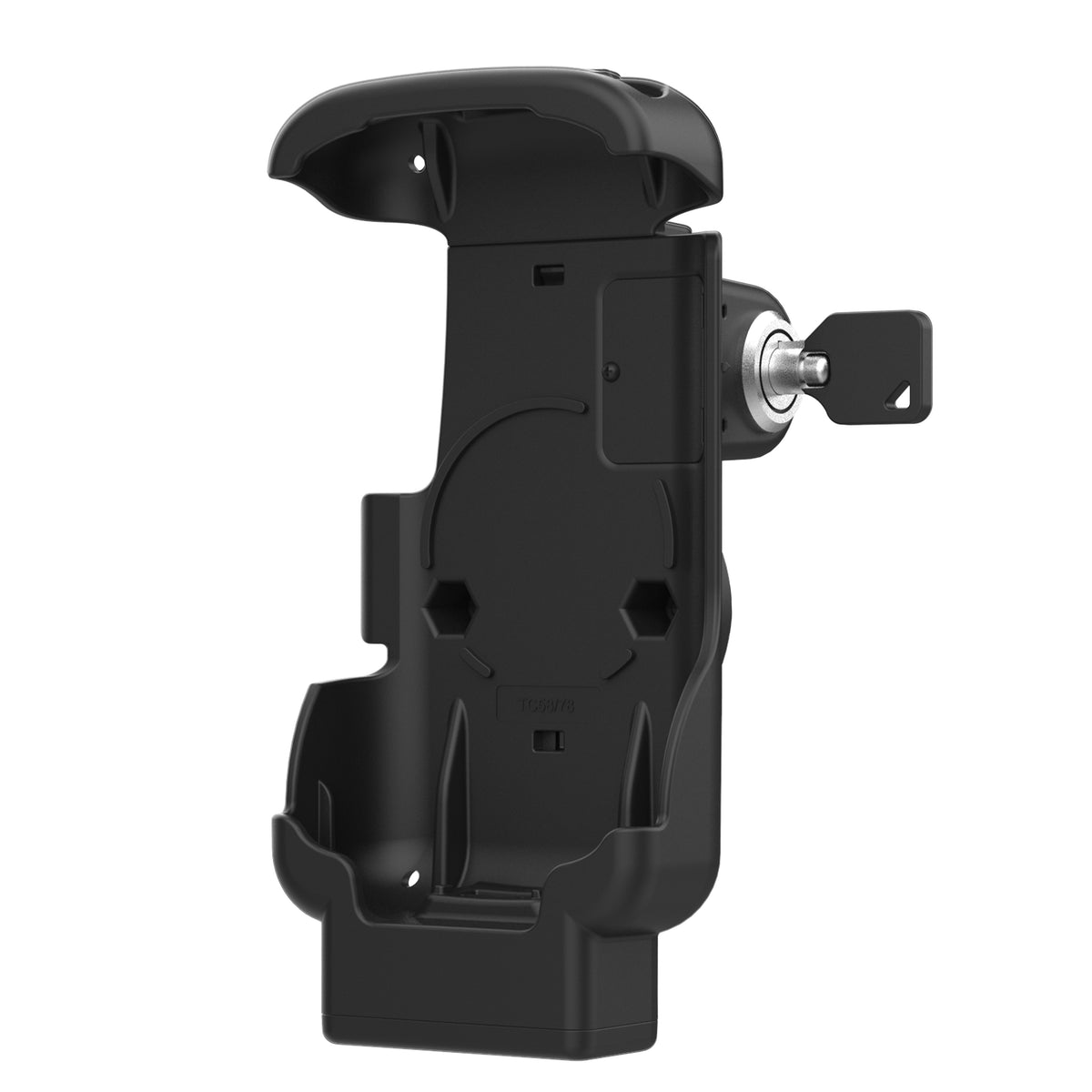

The RAM Key-Locking Form-Fit Dock for Zebra TC53 & TC58 (RAM-HOL-ZE17L-NP-2U) is a spring-loaded, non-powered docking station designed to securely retain Zebra TC53 and TC58 rugged handheld computers. Its integrated key-operated locking mechanism provides additional device security, while the form-fit design accommodates either model with or without the Zebra rugged boot.

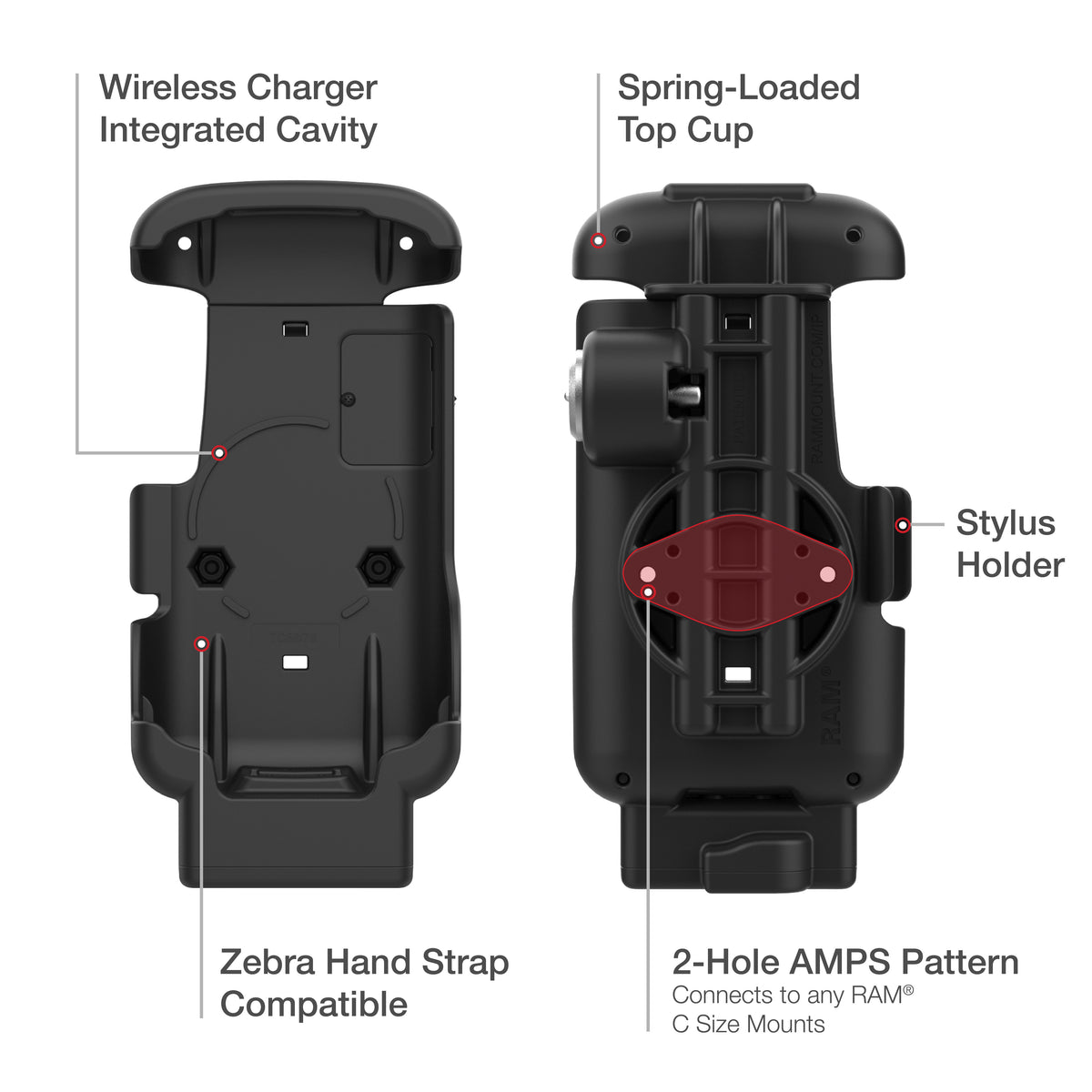

The dock features an integrated stylus holder, maintains access to the device's speaker and microphone, and accommodates the Zebra hand strap accessory. An integrated cavity supports installation of an optional RAM wireless charger, while the 2-hole AMPS mounting interface allows attachment to compatible RAM B Size and C Size mounting systems.
Key Features
-
Key-Locking Security: Integrated key-operated lock helps protect against unauthorized device removal.
-
Form-Fit Dock: Designed specifically for Zebra TC53 and TC58 rugged handheld computers.
-
Spring-Loaded Retention: Securely holds the device while allowing convenient insertion and removal.
-
Non-Powered Configuration: Provides physical device retention without integrated charging.
-

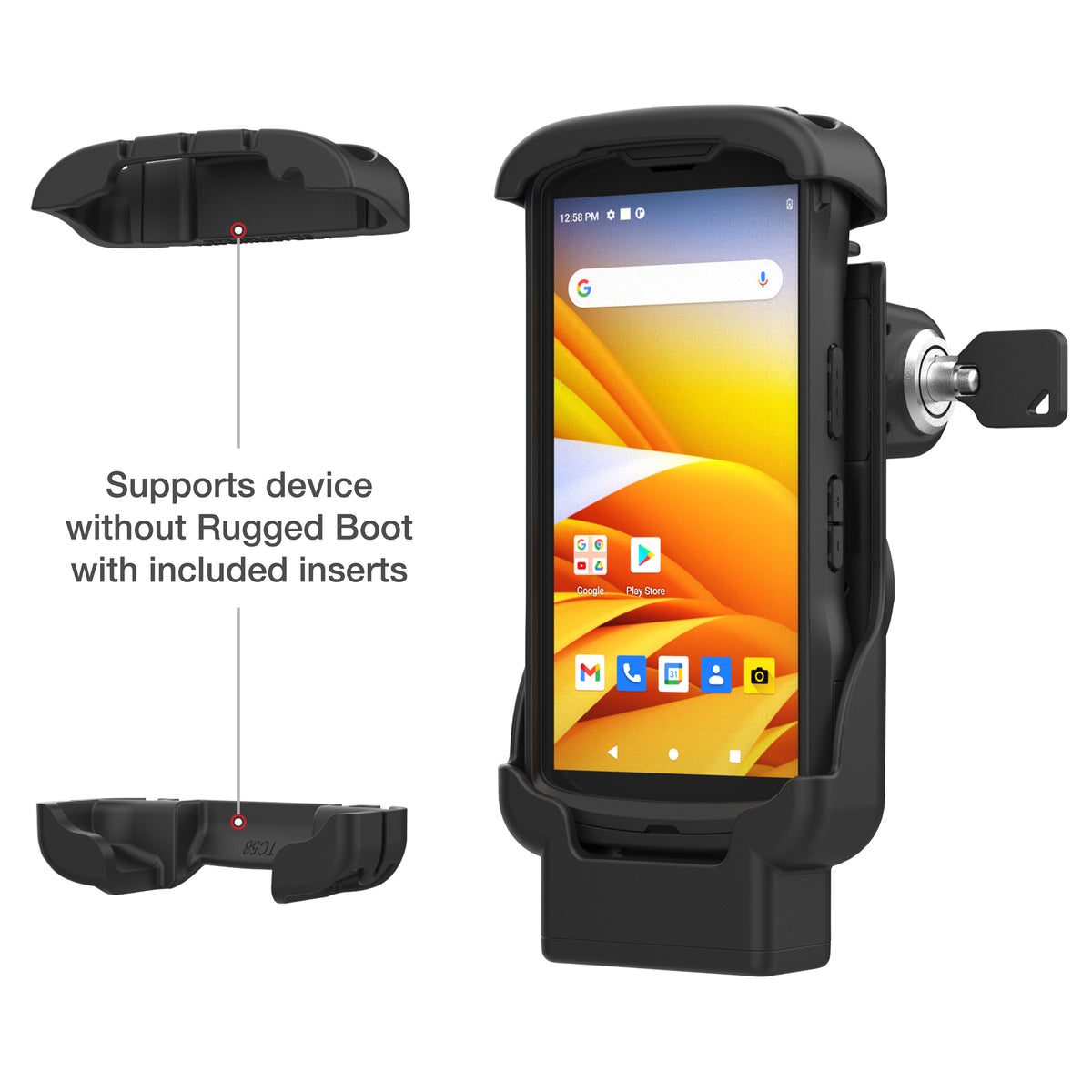

Rugged Boot Compatibility: Accommodates Zebra TC53 and TC58 devices with or without the Zebra rugged boot.
-
Optional Wireless Charger Accommodation: Integrated cavity accepts a compatible RAM wireless charger, sold separately.
-
Integrated Stylus Holder: Snap-in storage keeps a stylus accessible when not in use.
-
Device Accessibility: Maintains access to the speaker and microphone while docked.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Accepts compatible 2-hole AMPS diamond bases for RAM B Size (1") or C Size (1.5") mounting systems.
-
Durable Construction: Manufactured from high-strength composite material.
Use Cases & Compatibility
Designed for Zebra TC53 and TC58 rugged handheld computers, this locking dock is suitable for warehouse operations, inventory management, material handling, logistics, and other professional environments requiring secure device retention.
Device Compatibility:
-
Zebra TC53
-
Zebra TC58
-
Compatible with or without the Zebra rugged boot
-
Accommodates the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
Compatible RAM B Size (1") diamond ball bases
-
Compatible RAM C Size (1.5") diamond ball bases
-
Compatible RAM double socket arms and mounting components
Optional Wireless Charging:
-

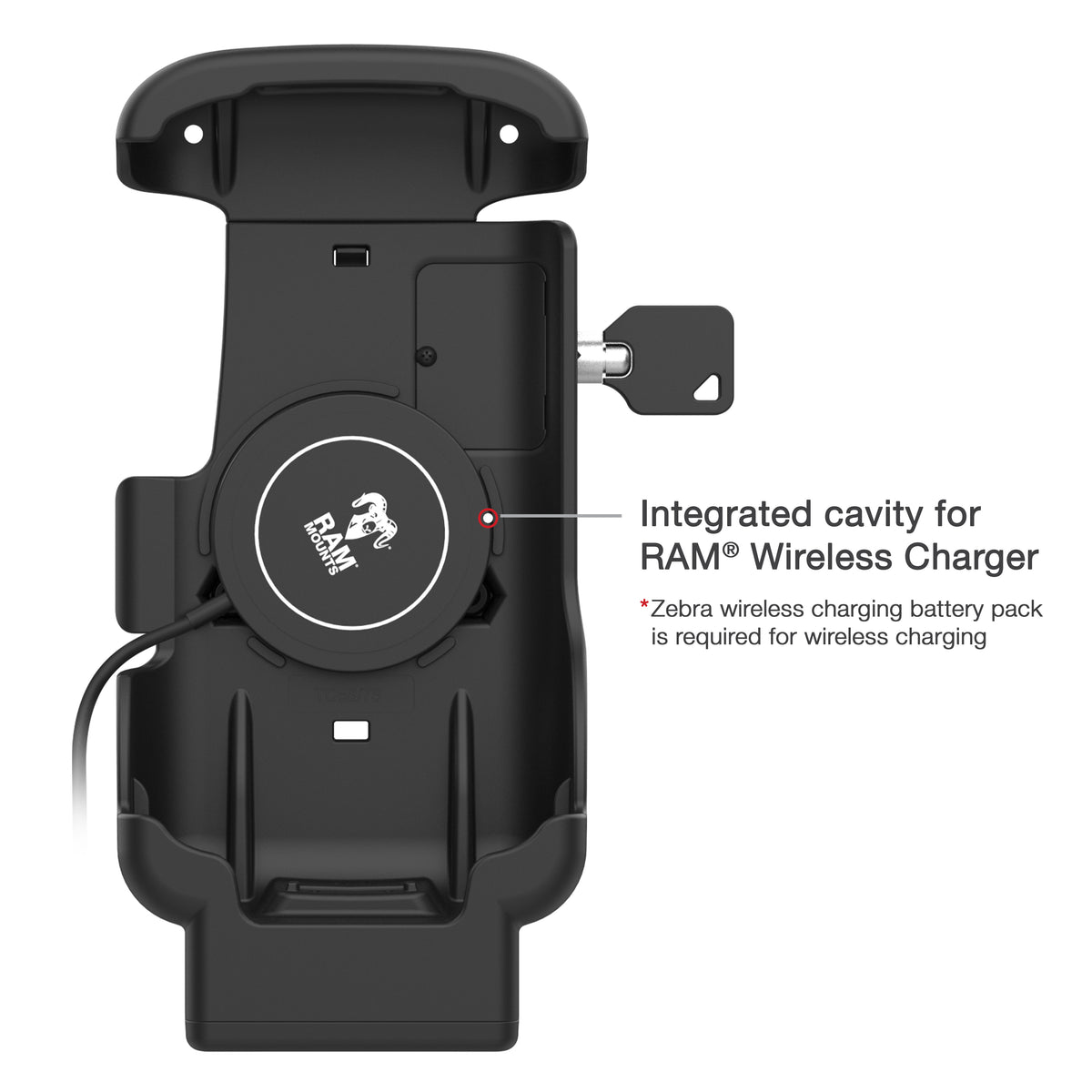

Integrated cavity accommodates an optional RAM wireless charger, sold separately.
-
To use the RAM wireless charger, the device must have the Zebra wireless charging battery pack installed.
This is a non-powered docking station. The optional wireless charging equipment and RAM mounting components are not included.
Specifications
-
Compatible Devices: Zebra TC53, TC58
-
Dock Type: Spring-loaded, form-fit, non-powered
-
Locking Mechanism: Key-operated lock
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Wireless Charger Accommodation: Integrated cavity for optional RAM wireless charger
-
Material: High-strength composite
-
Product Weight: 0.80 lb
What's Included
-
(1) RAM Key-Locking Form-Fit Dock for Zebra TC53 & TC58
-
(2) Keys
-
(1) Top cup insert
-

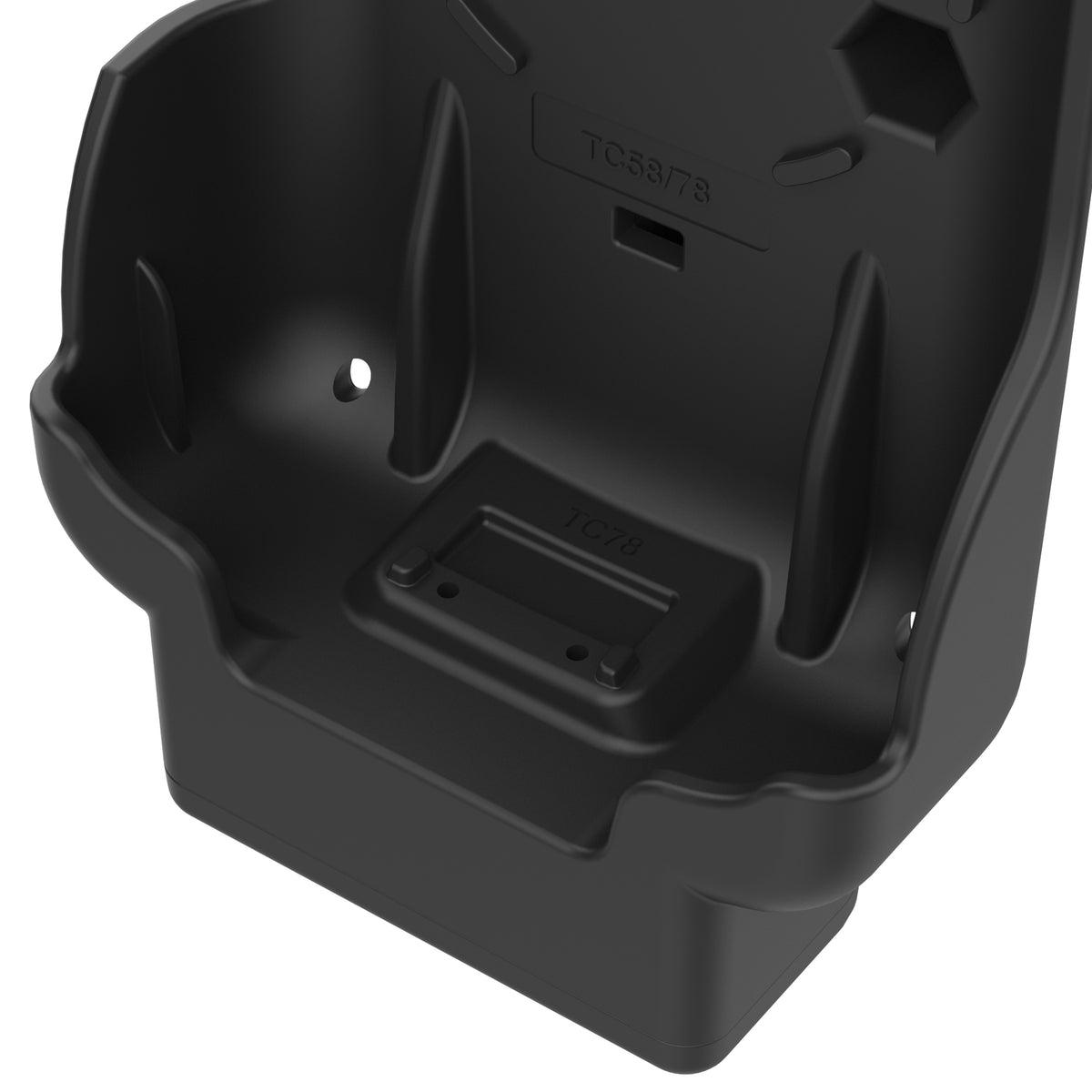

(2) Bottom cup insert options
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17L-NP-2U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
