Description

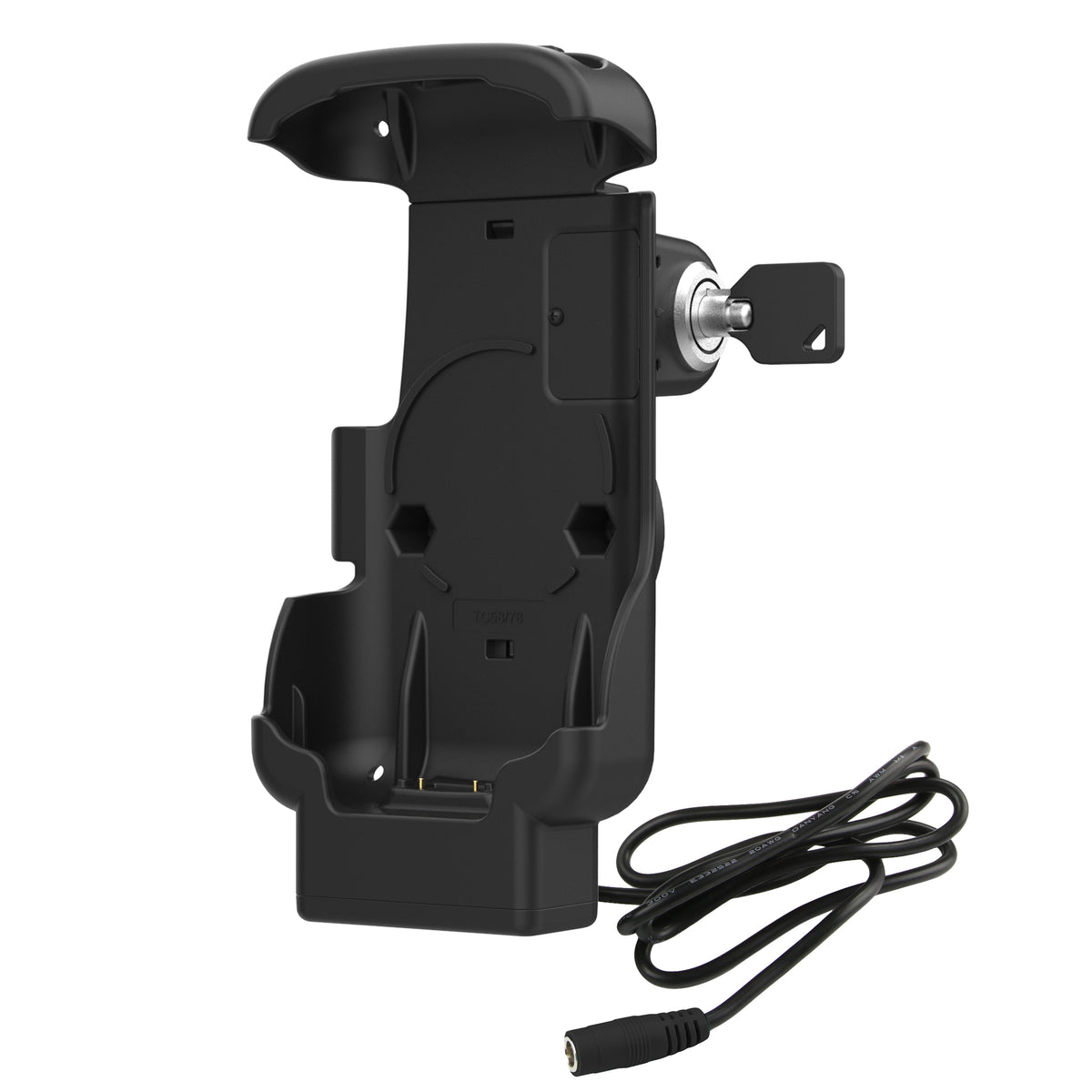

The RAM Key-Locking Form-Fit Powered Dock for Zebra TC53 & TC58 (RAM-HOL-ZE17L-2U) is a spring-loaded docking station designed to securely hold and provide charging connectivity for Zebra TC53 and TC58 rugged handheld computers. Its integrated key-operated lock adds device security, while the form-fit cradle accommodates either model with or without the Zebra rugged boot.
Designed for professional mobile and industrial applications, the dock includes an integrated stylus holder, maintains access to the device's speaker and microphone, and accommodates the Zebra hand strap accessory. A 2-hole AMPS mounting interface allows attachment to compatible RAM diamond ball bases and adjustable B Size or C Size mounting systems.
Key Features
-
Key-Locking Security: Integrated key-operated locking mechanism helps prevent unauthorized device removal.
-
Form-Fit Powered Dock: Designed for Zebra TC53 and TC58 rugged handheld computers.
-

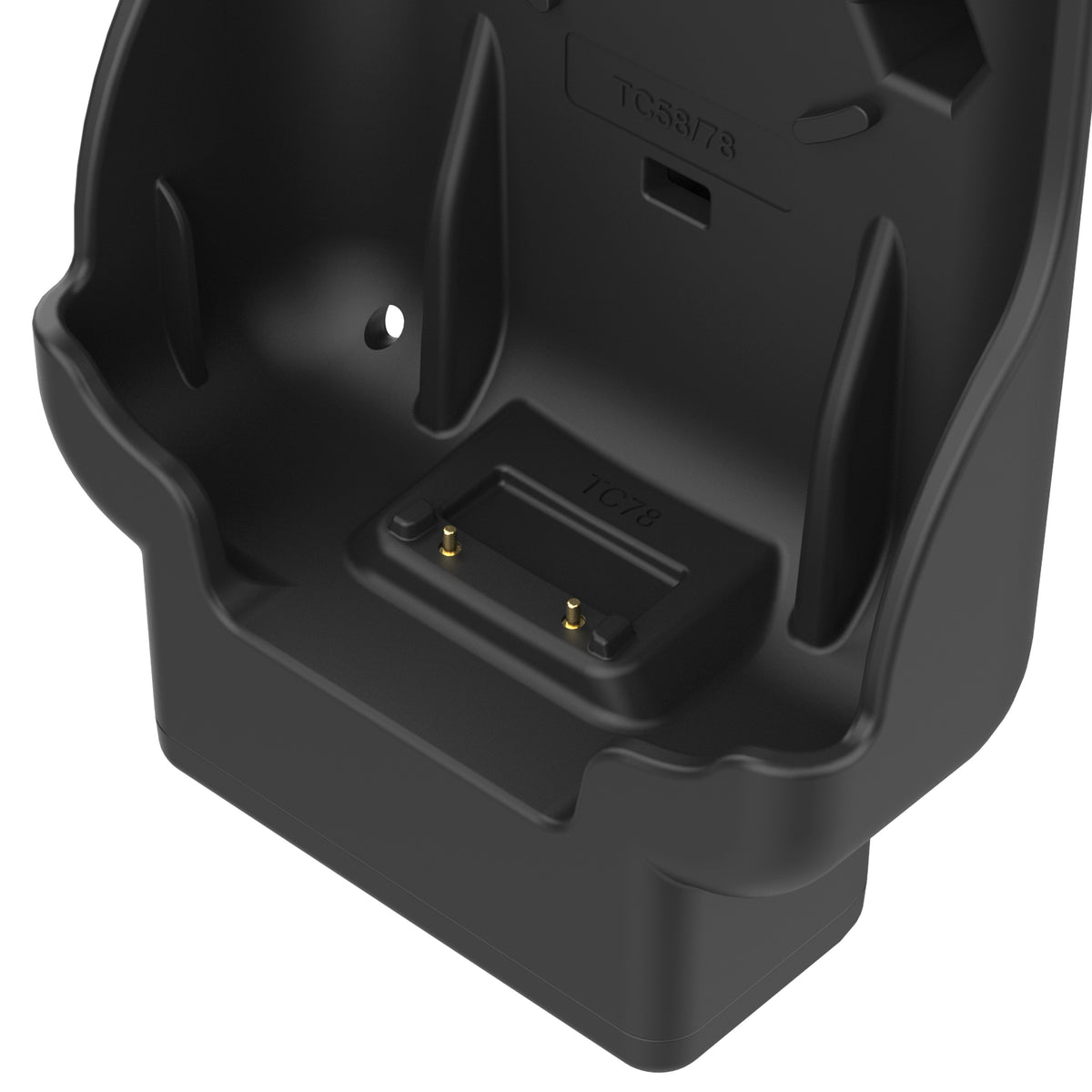

Spring-Loaded Retention: Securely holds the handheld computer while allowing convenient device insertion and removal.
-

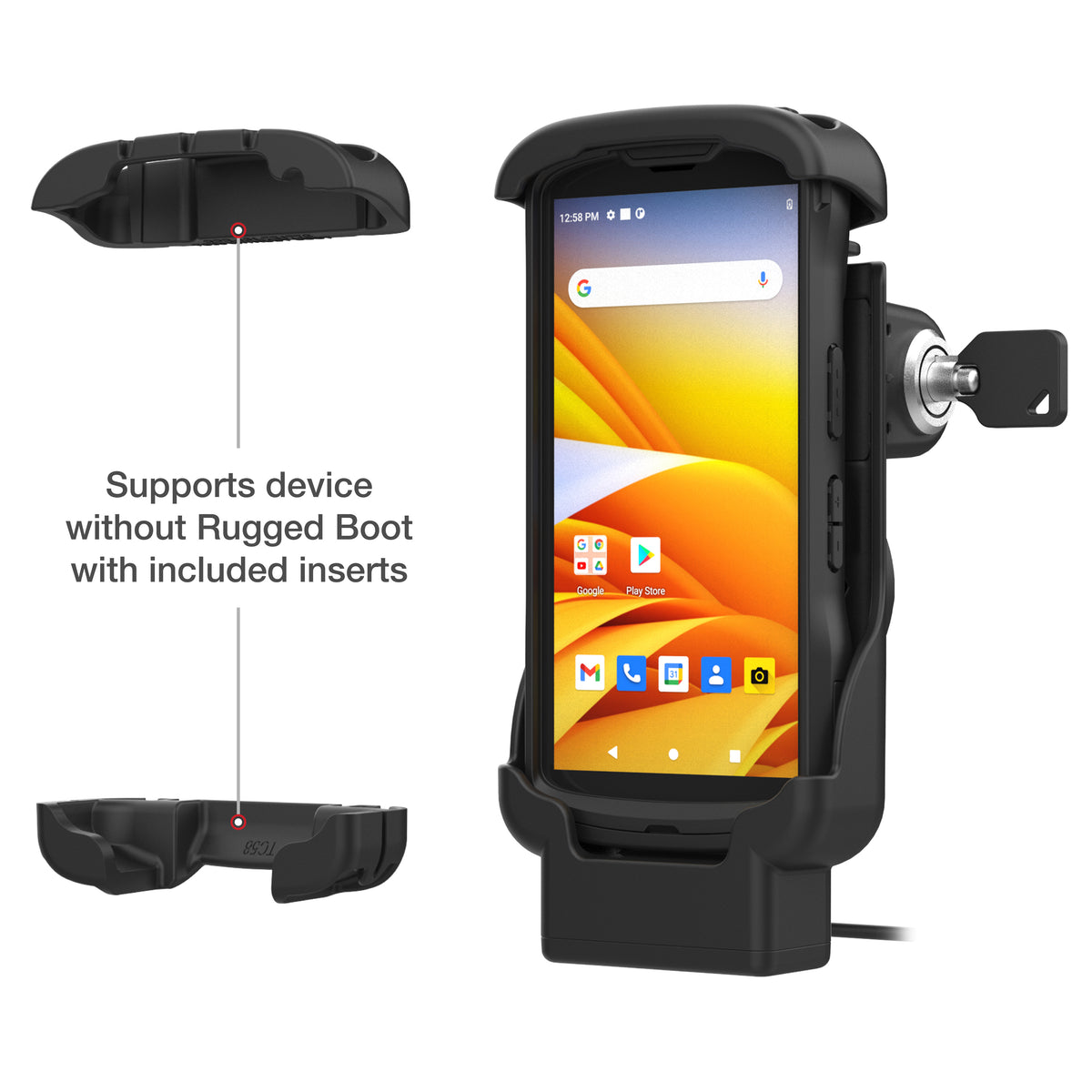

Rugged Boot Compatibility: Accommodates the TC53 and TC58 with or without the Zebra rugged boot.
-

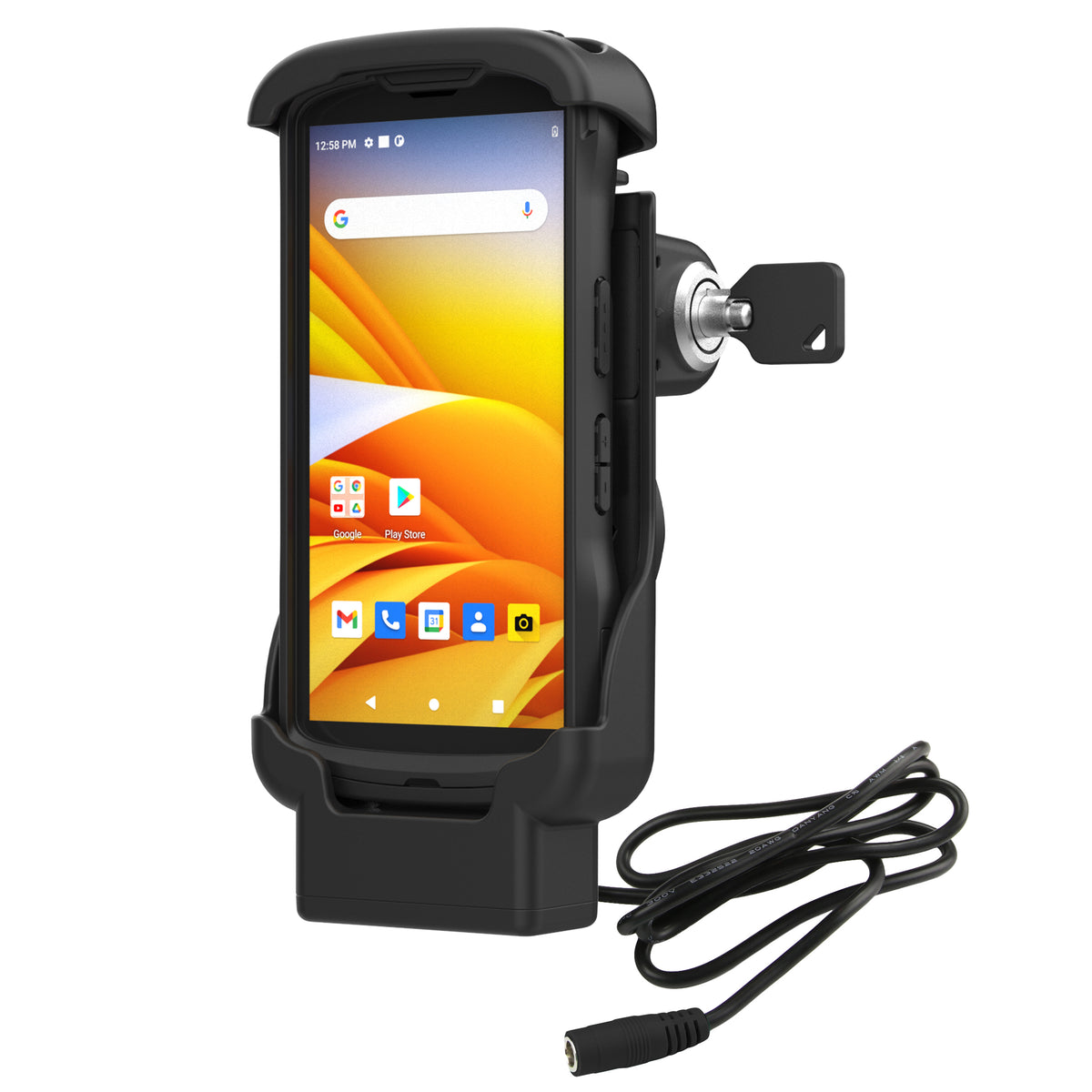

Charging Connectivity: Features a 5.5mm DC connector and a 1.25-meter input cable.
-

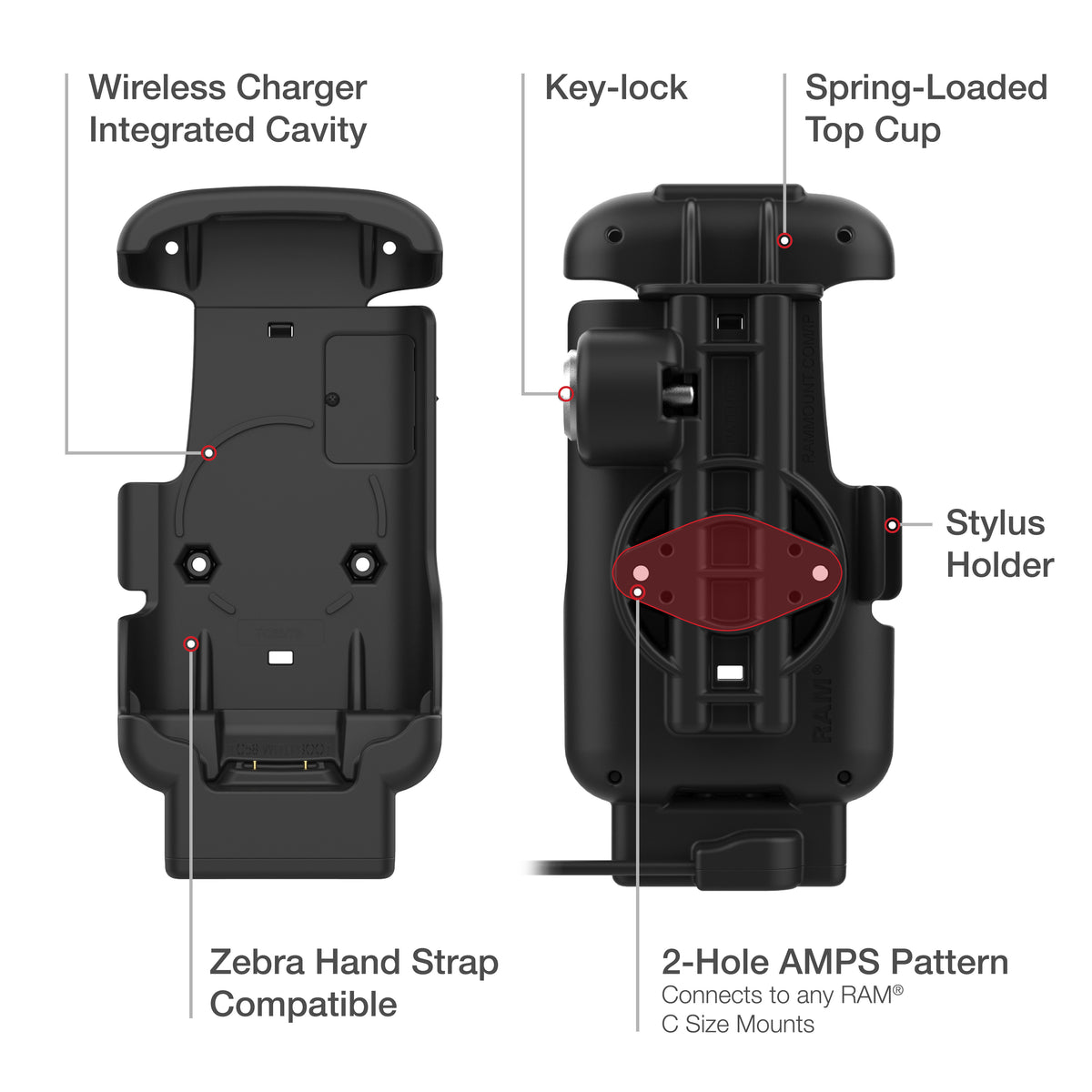

Integrated Stylus Holder: Snap-in storage keeps the stylus accessible when not in use.
-
Device Accessibility: Maintains access to the speaker and microphone while docked.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Supports compatible 2-hole AMPS diamond ball bases for B Size (1") and C Size (1.5") systems.
-
Durable Construction: Made from high-strength composite materials.
Use Cases & Compatibility
Designed for Zebra TC53 and TC58 rugged handheld computers, this powered locking dock is suitable for warehouse operations, inventory management, material handling, logistics, fleet applications, and field service.
Device Compatibility:
-
Zebra TC53
-
Zebra TC58
-
Compatible with or without the Zebra rugged boot
-
Compatible with the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912")
-
Compatible RAM B Size (1") diamond ball bases
-
Compatible RAM C Size (1.5") diamond ball bases
-
Compatible RAM double socket arms and mounting components
Power & Security:
-
5.5mm DC power connector
-
1.25-meter input cable
-
Integrated key-operated locking mechanism
-
Two keys included
Chargers are not included. Compatible RAM charging accessories and mounting components are available separately.
Specifications
-
Compatible Devices: Zebra TC53, TC58
-
Dock Type: Spring-loaded, form-fit powered dock
-
Locking Mechanism: Key-operated
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1.25 meters
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Material: High-strength composite
-
Product Weight: 0.92 lb
What's Included
-
(1) RAM Key-Locking Form-Fit Powered Dock for Zebra TC53 & TC58
-
(2) Keys
-
(1) Top cup insert
-
(2) Bottom cup insert options
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17L-2U
Warranty: Manufacturer's 3-year warranty.
Gadget Mounts is an authorized RAM Mounts Dealer.
