Description

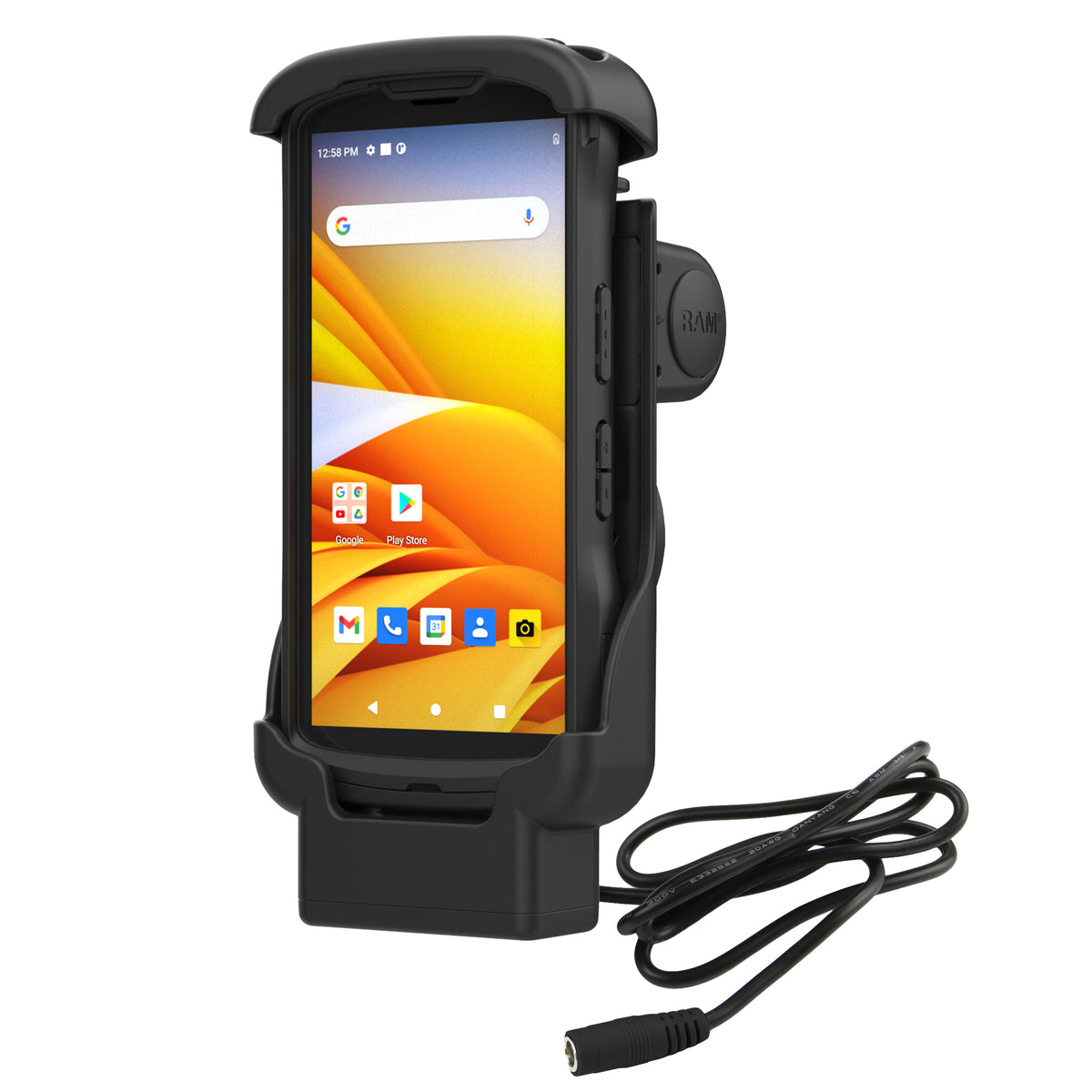

The RAM Form-Fit Powered Dock for Zebra TC53 & TC58 (RAM-HOL-ZE17-2U) is a spring-loaded docking station designed to securely retain and provide charging connectivity for Zebra TC53 and TC58 rugged handheld computers. The device-specific cradle accommodates either model with or without the Zebra rugged boot, providing flexibility for different equipment configurations.
Designed for commercial and industrial environments, the dock features an integrated stylus holder, maintains access to the device's speaker and microphone, and accommodates the Zebra hand strap accessory. Its 2-hole AMPS mounting interface supports compatible RAM B Size and C Size diamond ball bases for use with adjustable mounting systems.
Key Features
-
Form-Fit Powered Dock: Designed specifically for Zebra TC53 and TC58 rugged handheld computers.
-
Spring-Loaded Retention: Securely holds the device while allowing convenient insertion and removal.
-

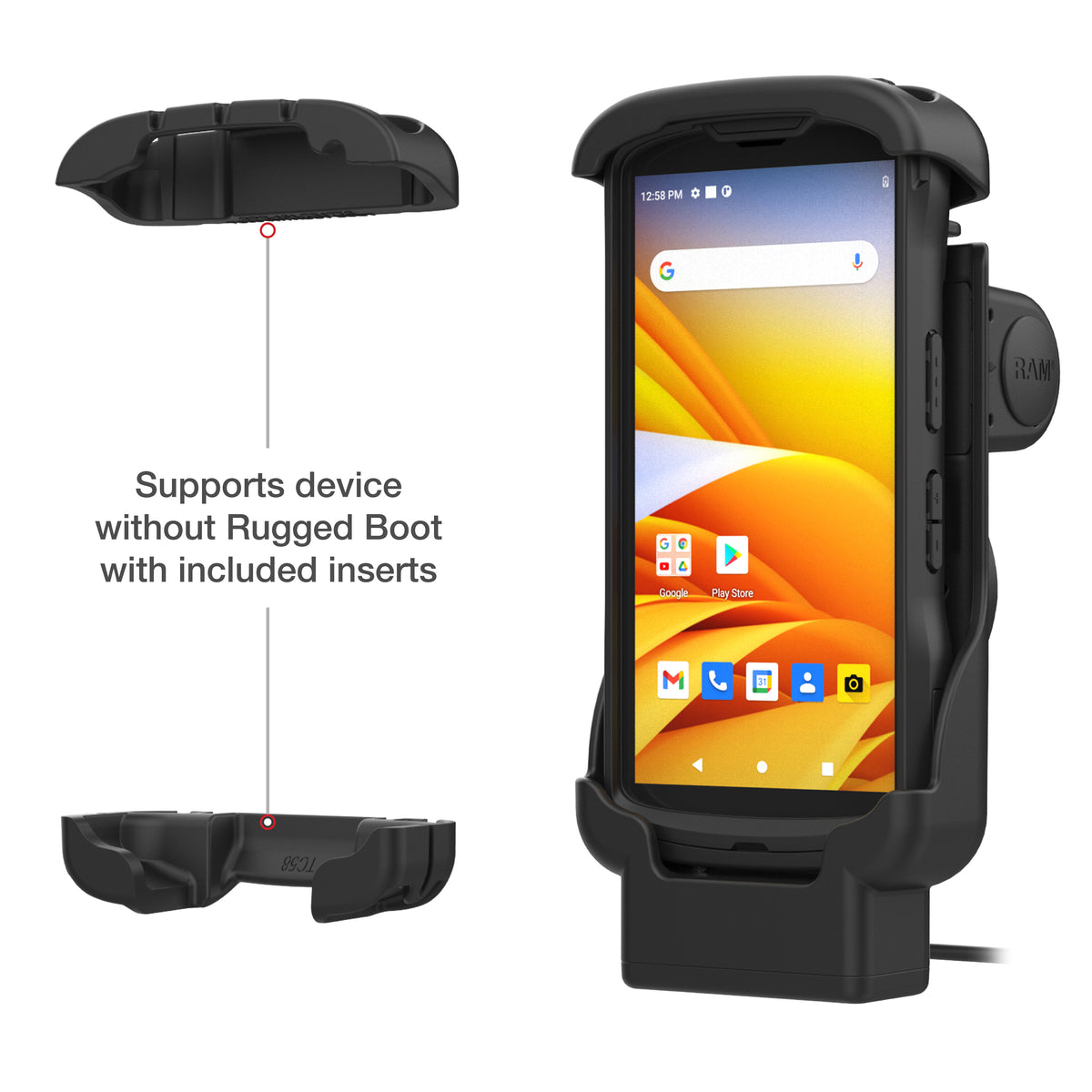

Rugged Boot Compatibility: Accommodates either device with or without the Zebra rugged boot.
-

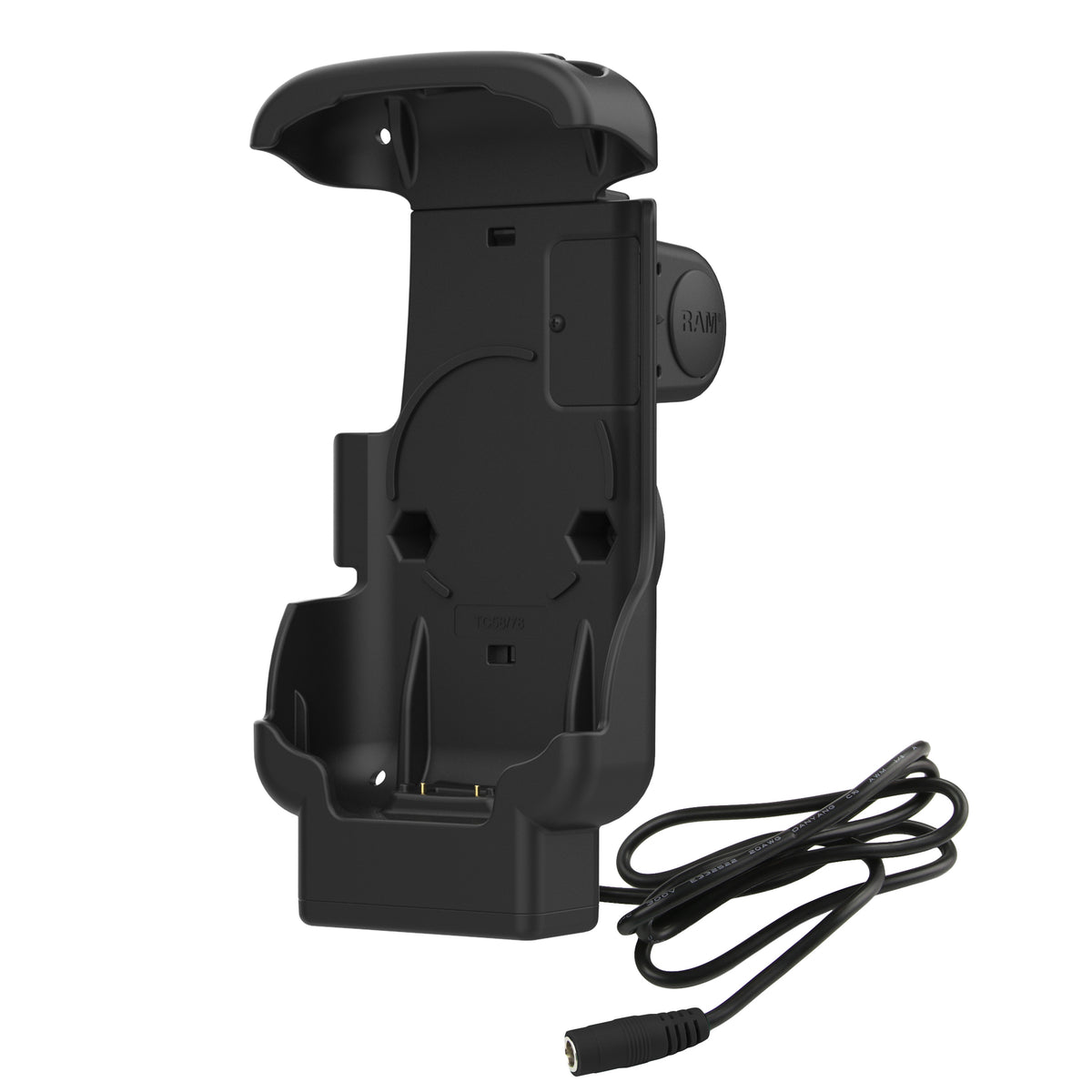

Charging Connectivity: Features a 5.5mm DC power connector and a 1.25-meter input cable.
-

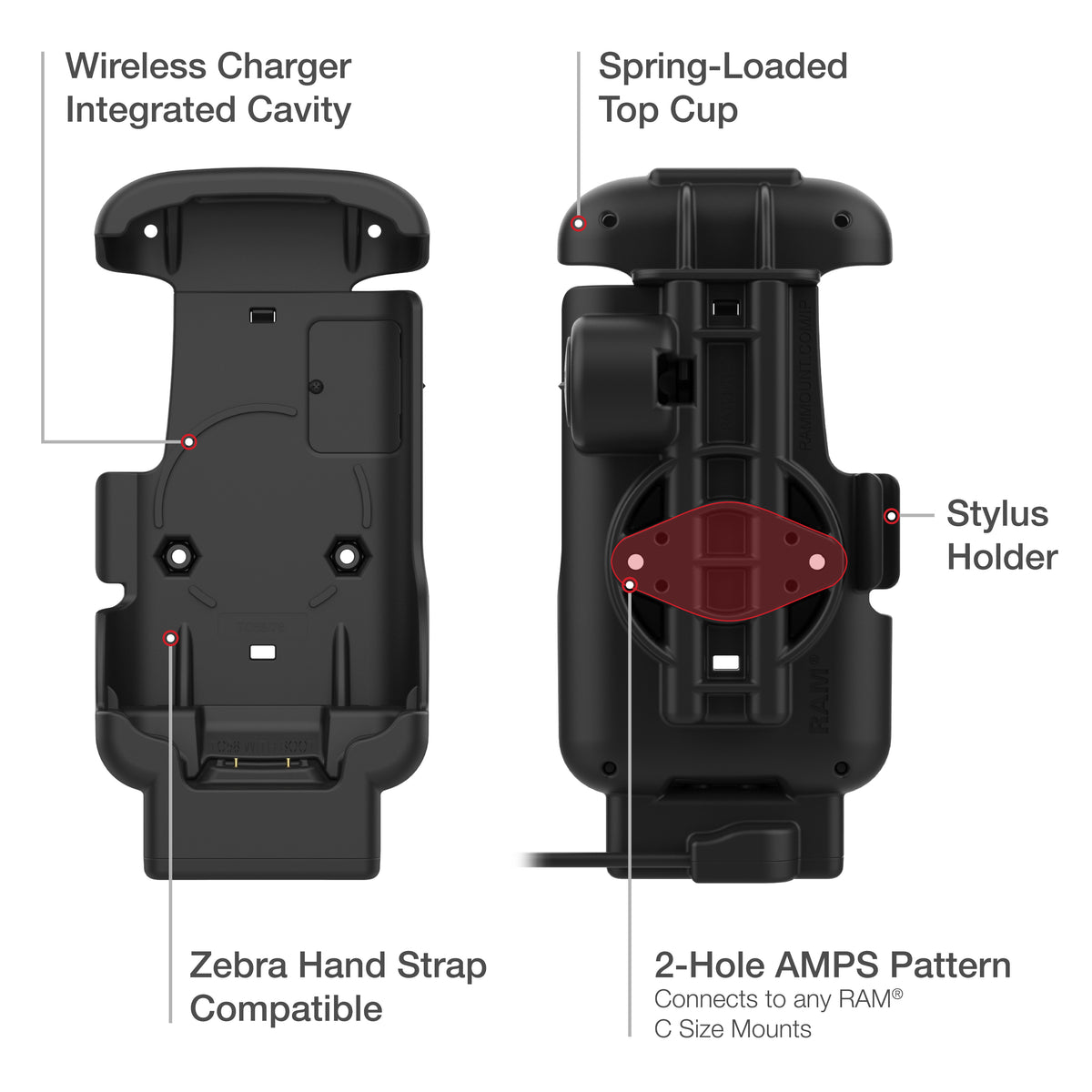

Integrated Stylus Holder: Snap-in holder provides convenient stylus storage when not in use.
-
Device Accessibility: Maintains access to the device's speaker and microphone while docked.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Supports RAM B Size (1") and C Size (1.5") 2-hole diamond ball bases.
-
Adjustable Positioning: Compatible RAM ball-and-socket mounting components allow flexible device positioning.
-
Durable Construction: Manufactured from high-strength composite for demanding professional applications.
Use Cases & Compatibility
Designed for Zebra TC53 and TC58 rugged handheld computers, this powered dock is suitable for warehouse operations, inventory management, material handling, logistics, fleet applications, and field service environments.
Device Compatibility:
-
Zebra TC53
-
Zebra TC58
-
Compatible with or without the Zebra rugged boot
-
Compatible with the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
Compatible RAM B Size (1") 2-hole diamond ball bases
-
Compatible RAM C Size (1.5") 2-hole diamond ball bases
-
Compatible RAM double socket arms and mounting components
Power Connectivity:
-
5.5mm DC power connector
-
1.25-meter input cable
-
Compatible charging accessories available separately
Chargers are not included. Compatible RAM mounting components and charging accessories can be selected separately for the desired installation.
Specifications
-
Compatible Devices: Zebra TC53, TC58
-
Dock Type: Form-fit, spring-loaded powered dock
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1.25 meters
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Material: High-strength composite
-
Product Weight: 0.77 lb
What's Included
-
(1) RAM Form-Fit Powered Dock for Zebra TC53 & TC58
-
(1) Top cup insert
-
(2) Bottom cup insert options
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17-2U
Warranty: Manufacturer's 3-year warranty.
