Description

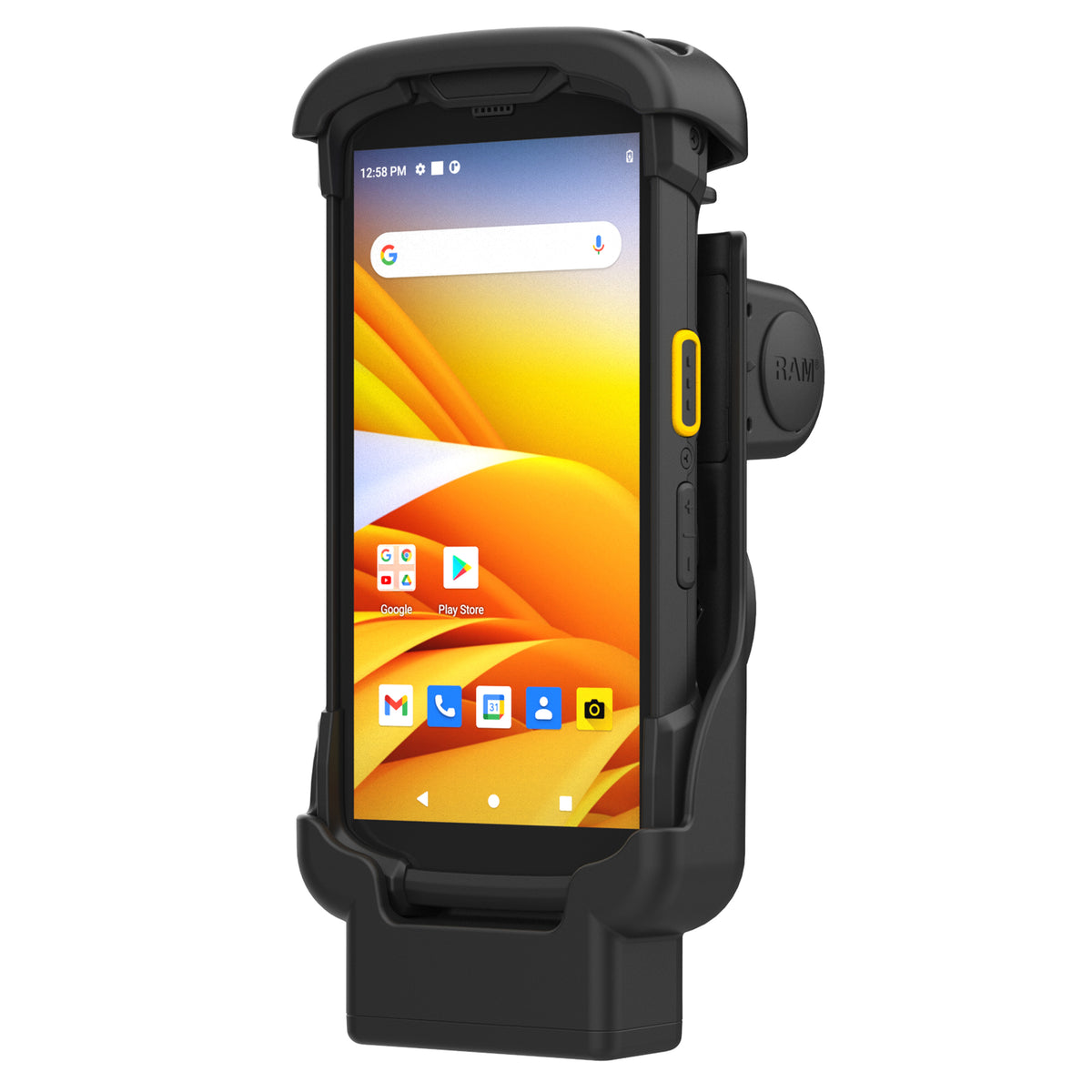

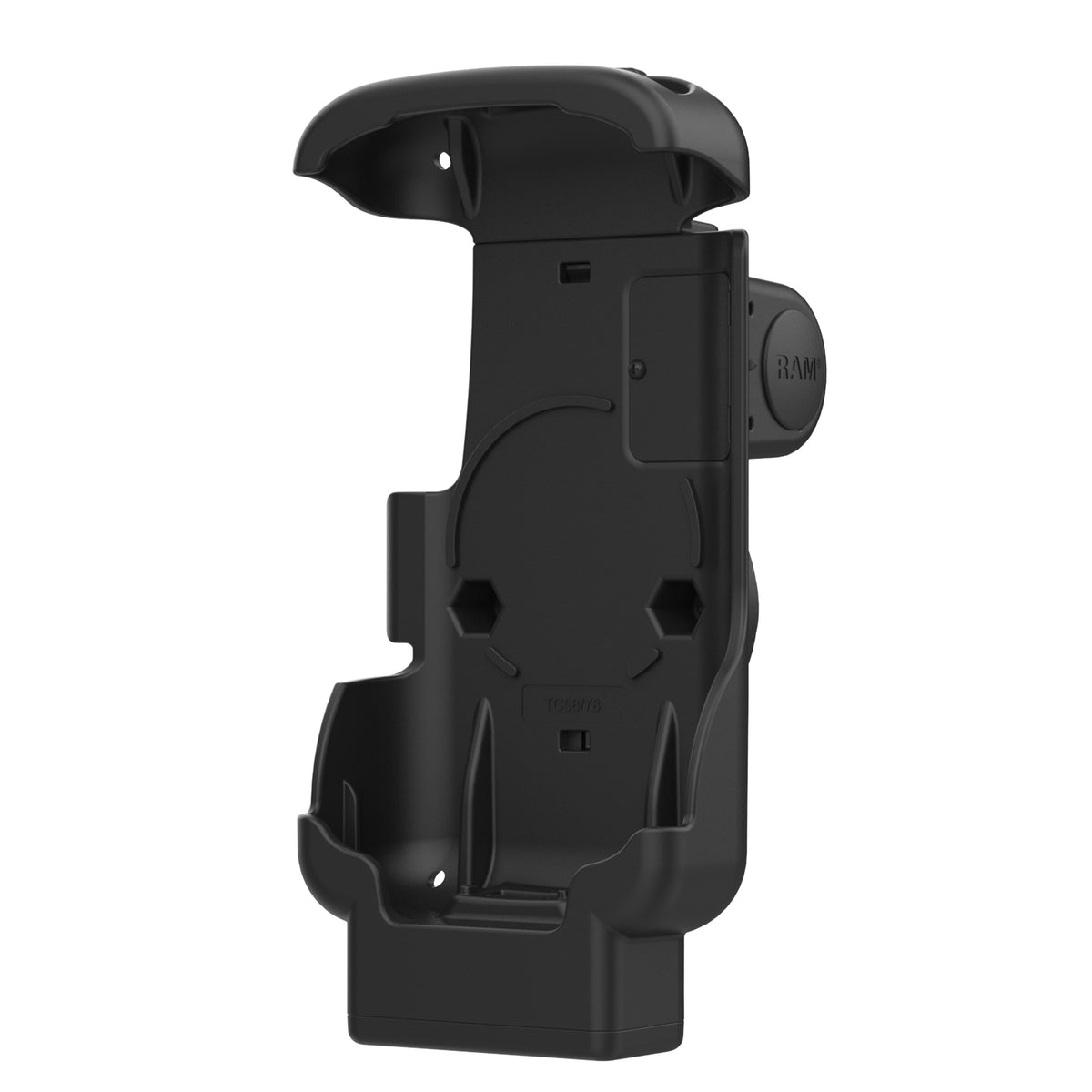

The RAM Form-Fit Holder for Zebra TC73 & TC78 (RAM-HOL-ZE17-NP-1U) is a spring-loaded, non-powered holder designed specifically for Zebra TC73 and TC78 rugged handheld computers. Its form-fit design provides secure device retention while accommodating the Zebra hand strap accessory.
The holder features an integrated stylus holder and a cavity designed to accommodate an optional RAM wireless charger. A 2-hole AMPS mounting pattern allows attachment to compatible RAM B Size or C Size diamond ball bases and adjustable mounting systems.

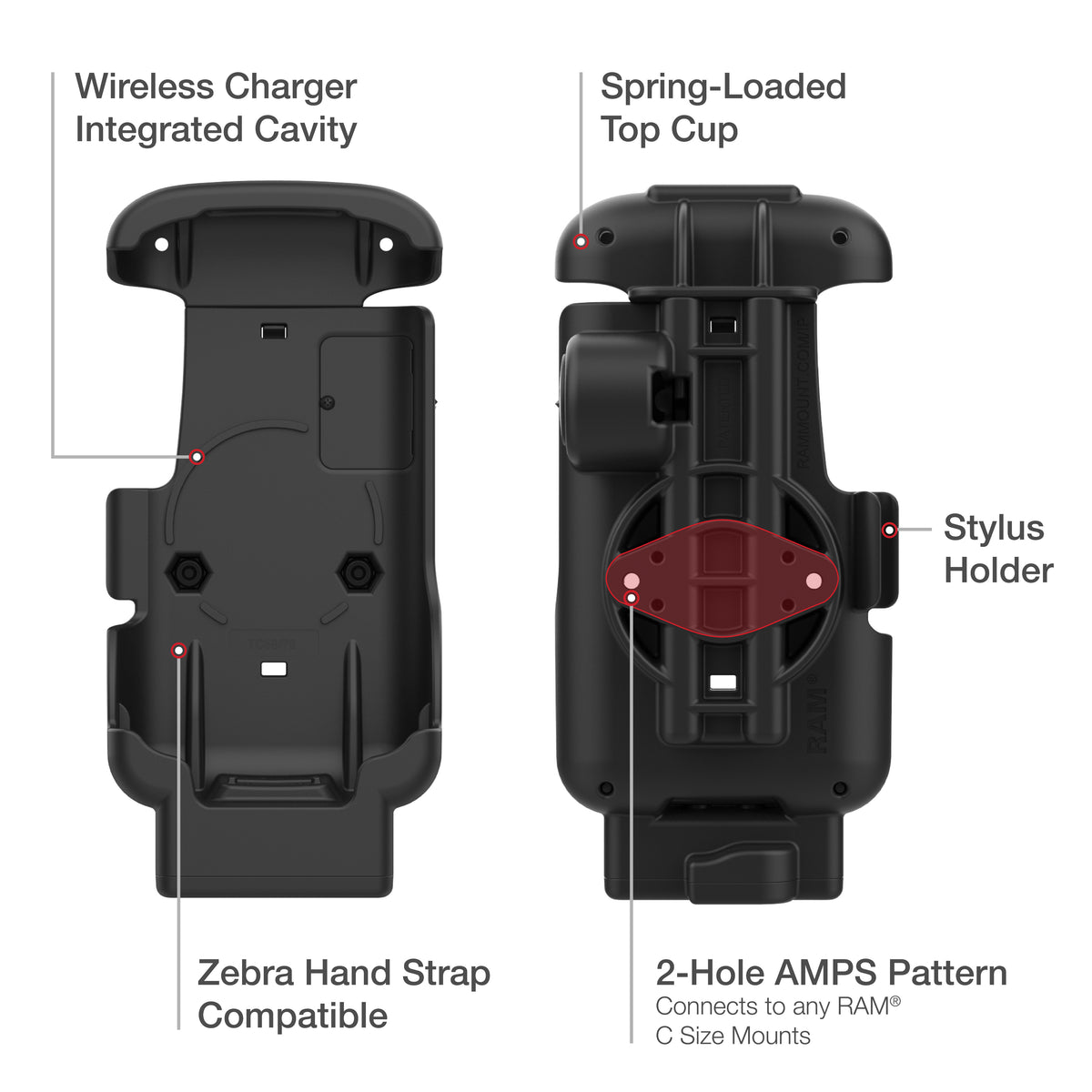

Key Features
-
Form-Fit Design: Specifically designed for Zebra TC73 and TC78 rugged handheld computers.
-
Spring-Loaded Retention: Securely holds the handheld computer while allowing convenient device insertion and removal.
-
Non-Powered Configuration: Provides physical device retention without integrated charging.
-

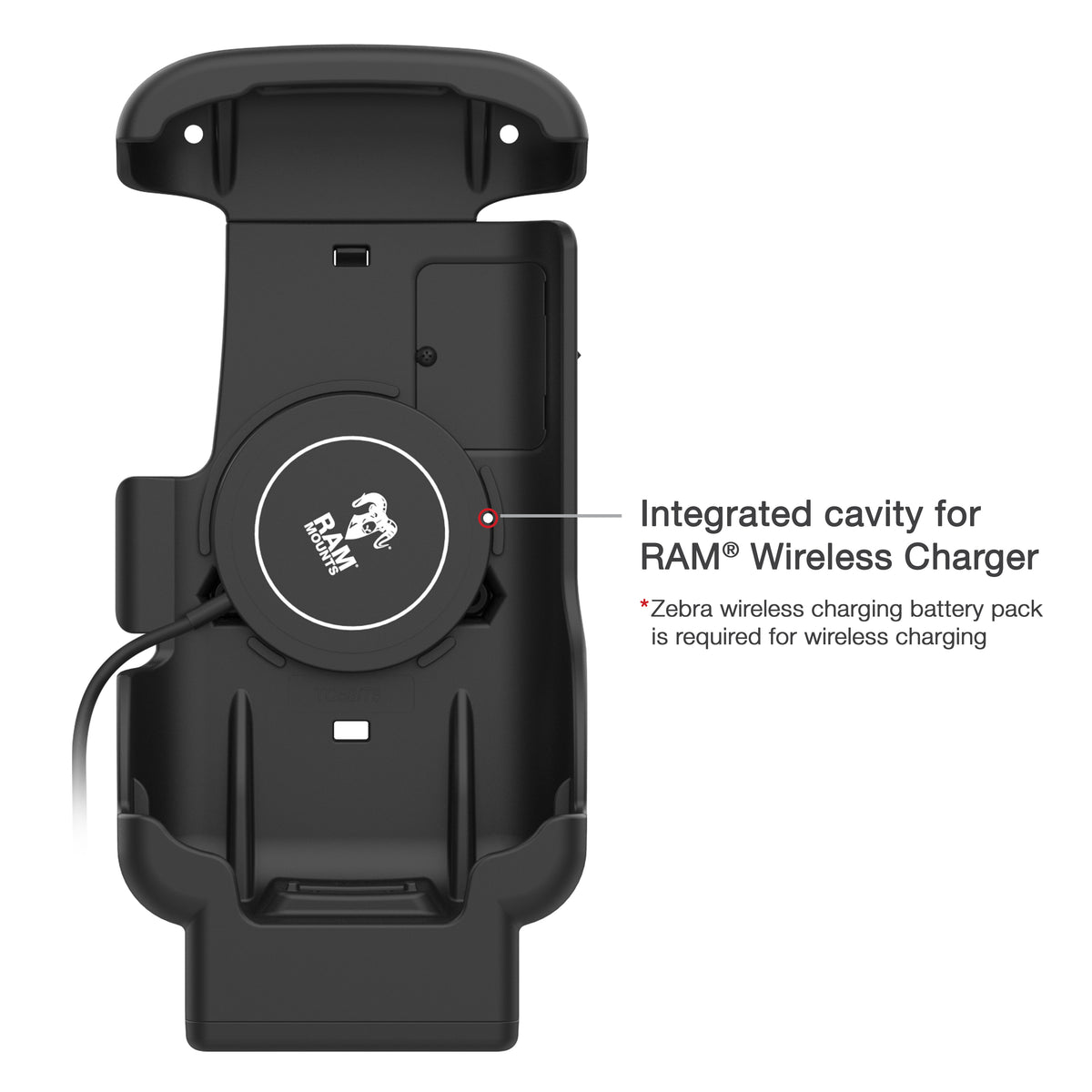

Wireless Charger Compatibility: Integrated cavity accommodates an optional RAM wireless charger, sold separately.
-
Integrated Stylus Holder: Snap-in storage location holds the device stylus when not in use.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
AMPS Mounting Interface: Compatible with RAM B Size (1") and C Size (1.5") 2-hole diamond ball bases.
-
Adjustable Mounting Options: Compatible RAM ball-and-socket components allow flexible positioning.
-
Durable Construction: Manufactured from high-strength composite for demanding professional environments.
Use Cases & Compatibility
Designed for Zebra TC73 and TC78 rugged handheld computers, this holder is suitable for warehouse operations, inventory management, material handling, logistics, transportation, and field service applications.
Device Compatibility:
-
Zebra TC73
-
Zebra TC78
-
Compatible with the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
RAM B Size (1") 2-hole diamond ball bases
-
RAM C Size (1.5") 2-hole diamond ball bases
-
Compatible RAM double socket arms and mounting components
Optional Wireless Charging:
-
Integrated cavity accommodates a compatible RAM wireless charger.
-
RAM wireless charger is sold separately.
-
Wireless charging requires the Zebra wireless charging battery pack to be installed in the handheld computer.
The holder provides a device-specific retention interface. Compatible RAM mounting components can be selected separately to configure the installation.
Specifications
-
Compatible Devices: Zebra TC73, Zebra TC78
-
Holder Type: Form-fit, spring-loaded, non-powered
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Wireless Charger Accommodation: Integrated cavity for optional RAM wireless charger
-
Materials: High-strength composite
-
Product Weight: 0.54 lb
What's Included
-
(1) RAM Form-Fit Holder for Zebra TC73 & TC78
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17-NP-1U
Warranty: Manufacturer's lifetime warranty.
Gadget Mounts is an authorized RAM Mounts Dealer.
