Description

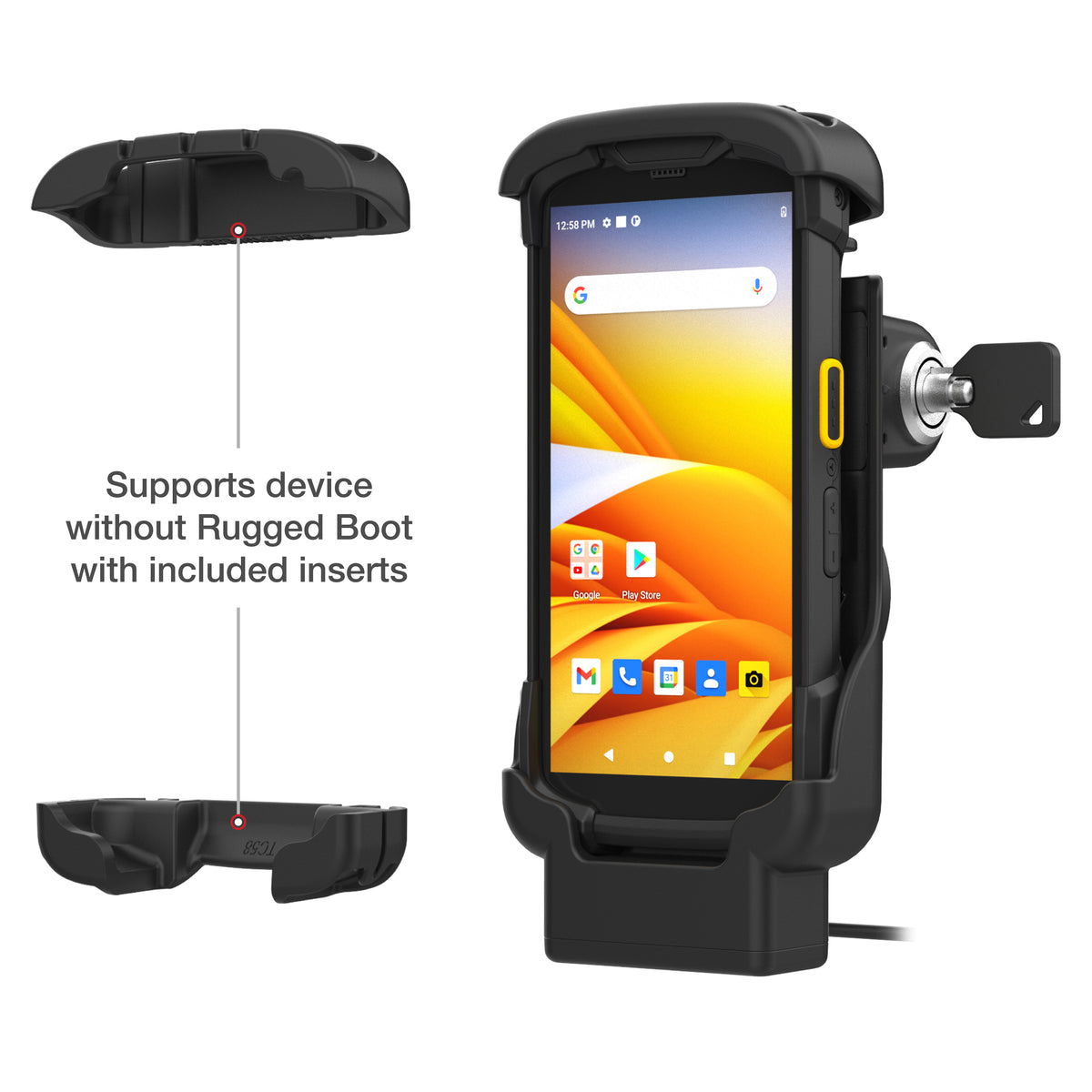

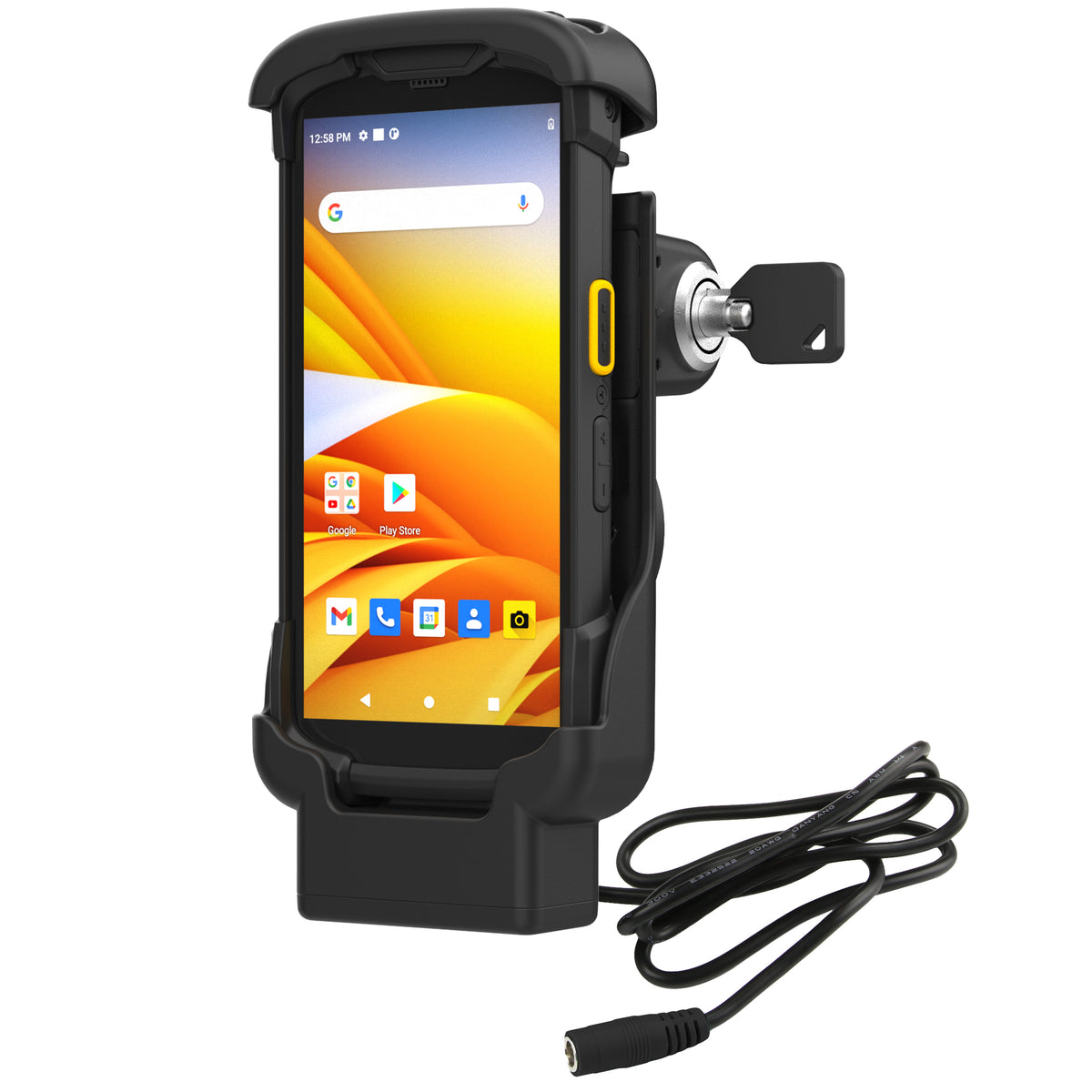

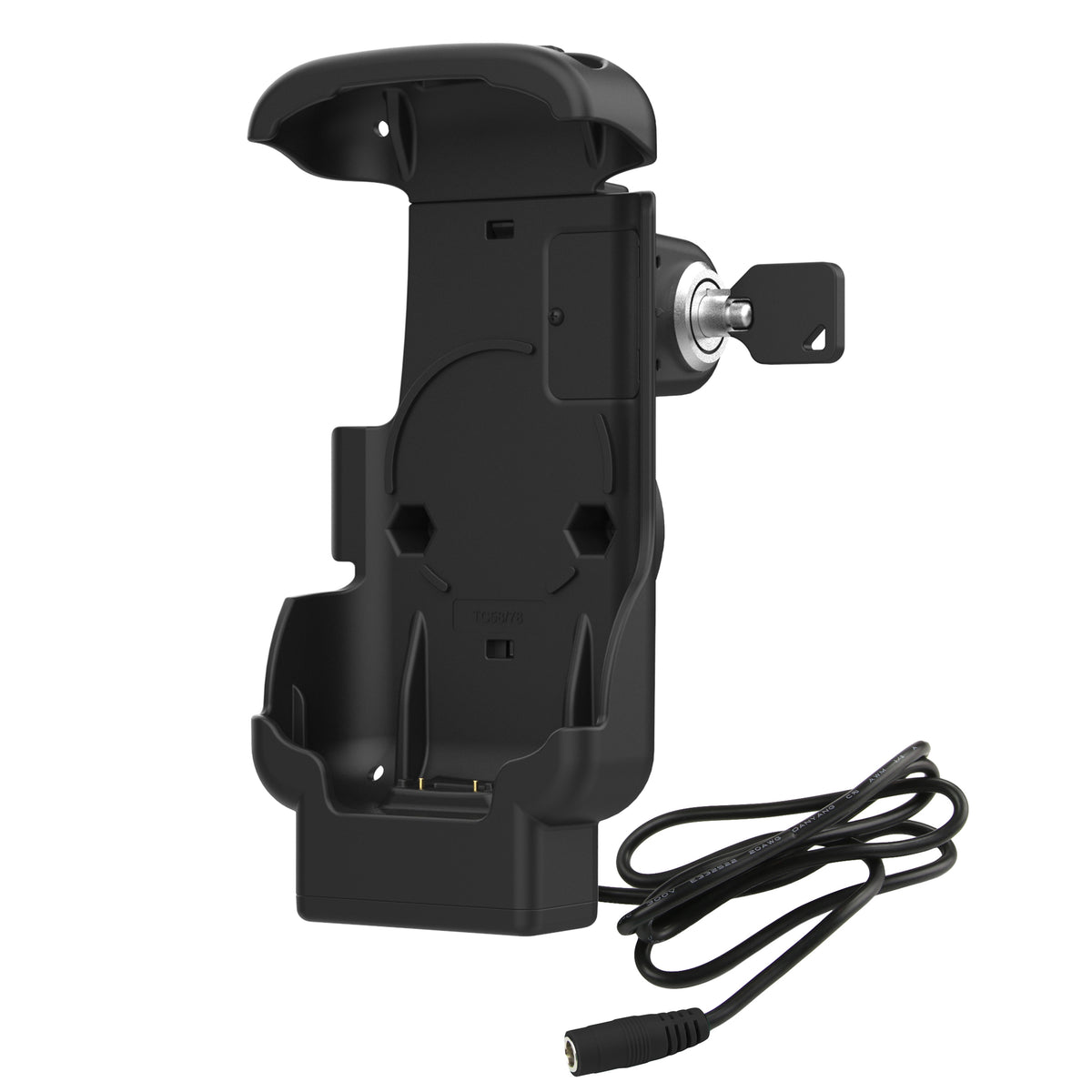

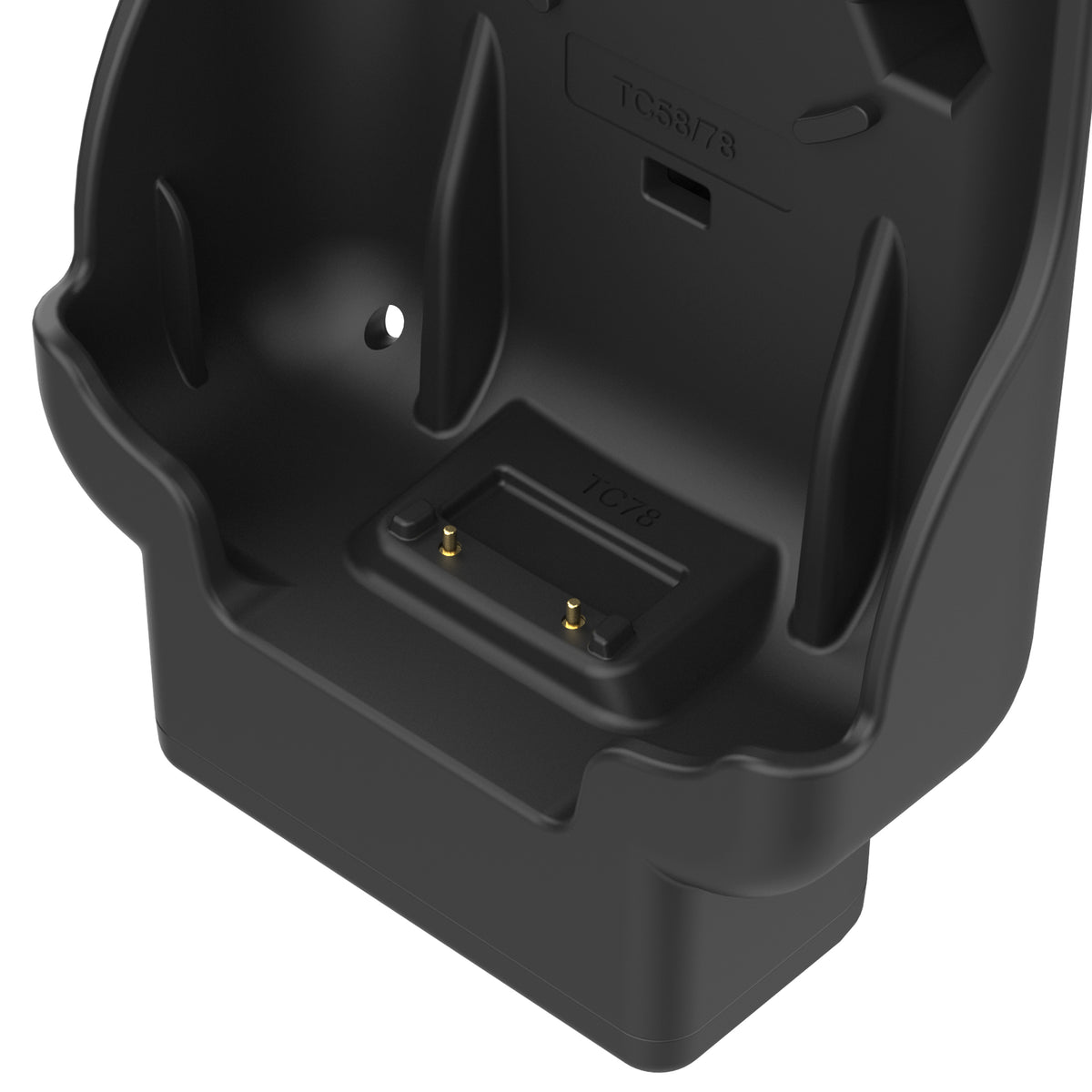

The RAM Key-Locking Form-Fit Powered Dock for Zebra TC73 & TC78 (RAM-HOL-ZE17L-1U) provides secure device retention and charging connectivity for Zebra TC73 and TC78 rugged handheld computers. Its spring-loaded, device-specific design features an integrated key-operated lock for additional security and a female 5.5mm DC barrel connector for connecting compatible charging equipment.
Designed for commercial and industrial environments, the dock accommodates the Zebra hand strap accessory and includes an integrated stylus holder. The 2-hole AMPS mounting pattern allows integration with compatible RAM diamond ball bases and B Size or C Size mounting systems.
Key Features
-

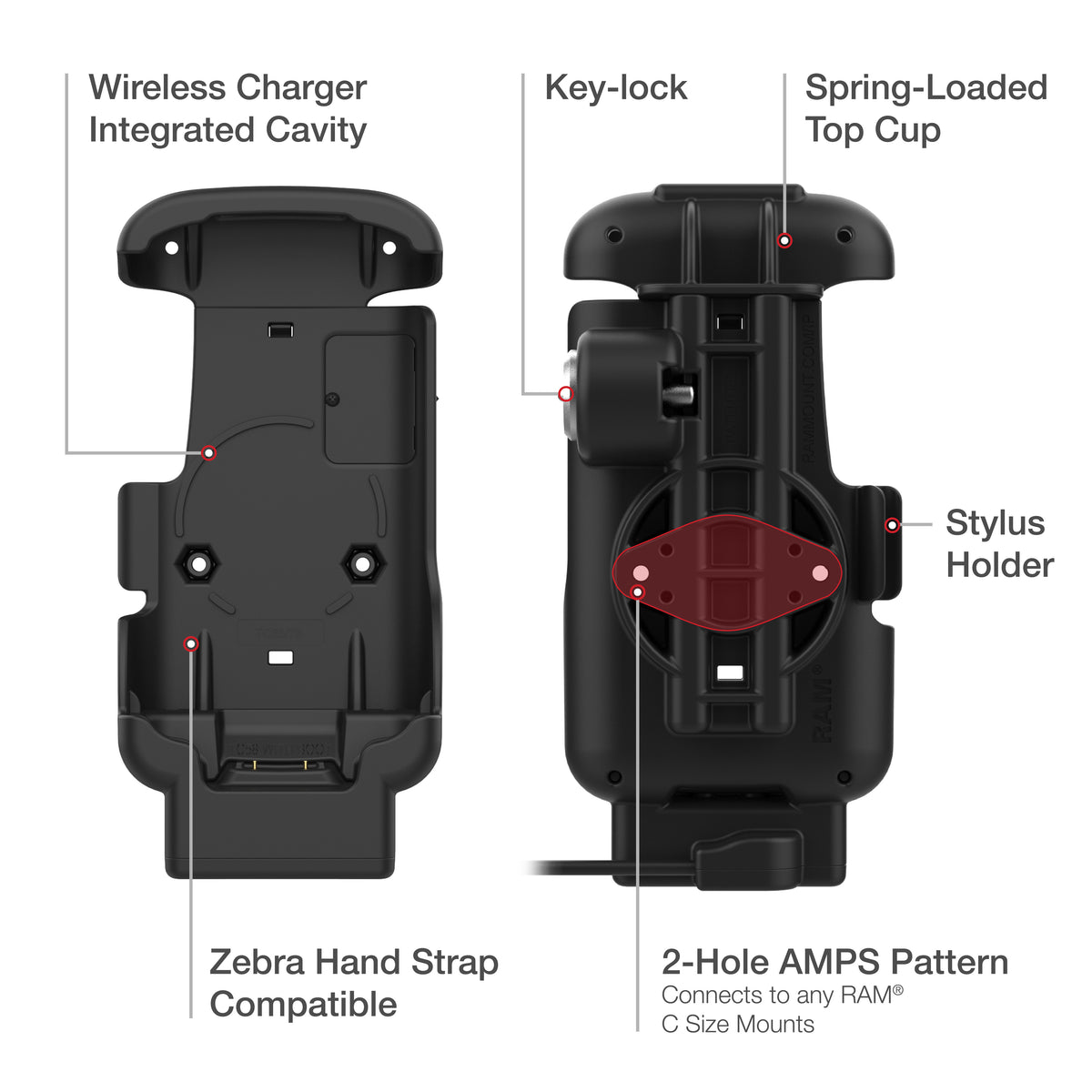

Key-Locking Security: Integrated key-operated lock provides additional protection against unauthorized device removal.
-
Form-Fit Powered Dock: Specifically designed for Zebra TC73 and TC78 rugged handheld computers.
-
Spring-Loaded Retention: Secures the handheld device while allowing convenient insertion and removal.
-
Charging Connectivity: Features a 5.5mm DC power connection with a 1.25-meter input cable.
-
Integrated Stylus Holder: Built-in storage securely holds a stylus when not in use.
-
Hand Strap Compatibility: Accommodates the Zebra hand strap accessory.
-
RAM Mounting Compatibility: Accepts compatible RAM 2-hole AMPS diamond ball bases and B Size or C Size mounting systems.
-
Flexible Positioning: Compatible RAM ball-and-socket mounting components provide adjustable positioning.
-
Durable Construction: Manufactured from high-strength composite material for demanding professional applications.
-
3-Year Warranty: Backed by RAM Mounts' manufacturer's 3-year warranty.
Use Cases & Compatibility
Designed for Zebra TC73 and TC78 rugged handheld computers, this powered locking dock is suitable for warehouse operations, inventory management, material handling, logistics, fleet applications, and field service.
Device Compatibility:
-
Zebra TC73
-
Zebra TC78
-
Compatible with the Zebra hand strap accessory
Mounting Compatibility:
-
2-hole AMPS mounting pattern (1.912" spacing)
-
Compatible RAM B Size (1") diamond ball bases
-
Compatible RAM C Size (1.5") diamond ball bases
-
Compatible RAM double socket arms and mounting components
Power & Security:
-
Female 5.5mm DC barrel power connector
-
1.25-meter input cable
-
Integrated key-operated locking mechanism
-
Compatible external charging accessories available separately
Chargers are not included. Compatible RAM charging accessories and mounting components can be selected separately to configure the installation.
Specifications
-
Compatible Devices: Zebra TC73, TC78
-
Dock Type: Spring-loaded, form-fit powered dock
-
Security: Key-operated lock
-
Input Connector: 5.5mm DC connector
-
Input Cable Length: 1.25 meters
-
Mounting Hole Pattern: 2-Hole AMPS (1.912")
-
Material: High-strength composite
-
Product Weight: 0.80 lb
What's Included
-
(1) RAM Key-Locking Form-Fit Powered Dock for Zebra TC73 & TC78
-
(2) Keys
-
(2) #8-32 x 3/4" machine screws
-
(2) #8-32 x 5/8" machine screws
-
(2) #8-32 Nyloc nuts
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-HOL-ZE17L-1U
Warranty: Manufacturer's 3-year warranty.
Gadget Mounts is an authorized RAM Mounts Dealer.
