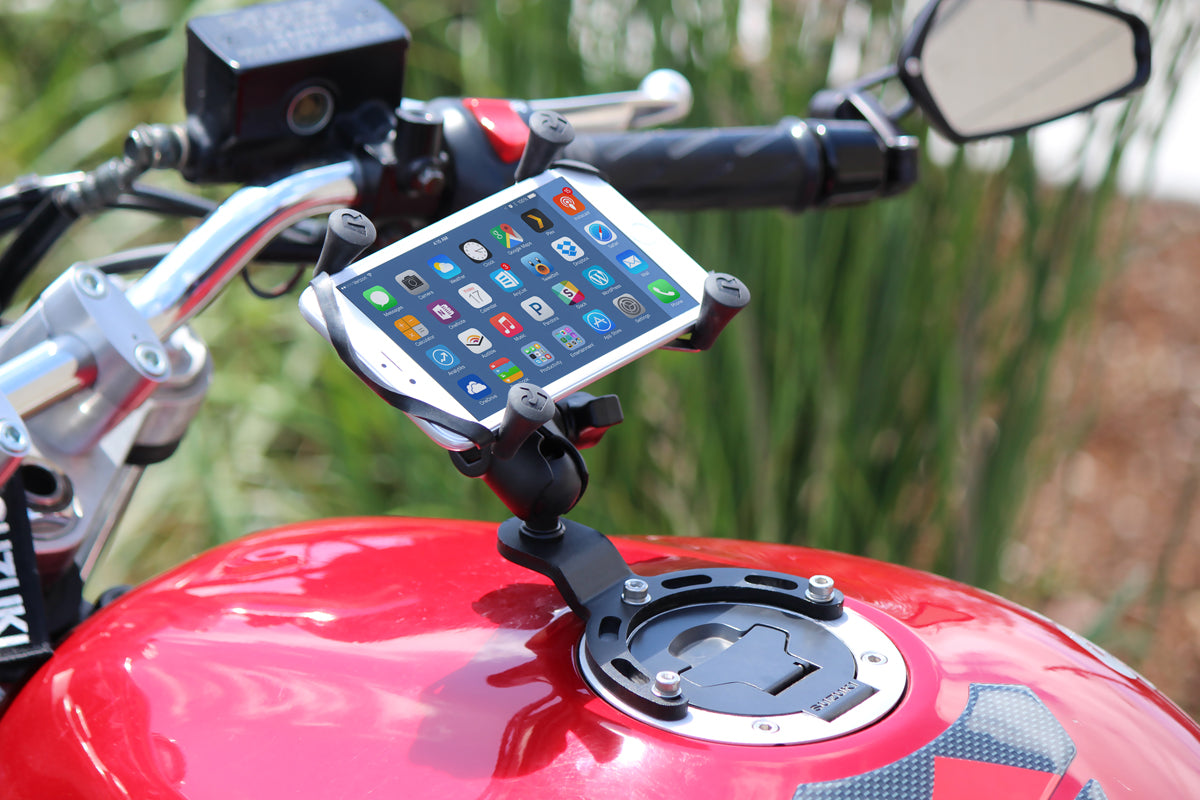

RAM Motorcycle Gas Tank Small Base Mount w/ X-Grip Holder f/ Larger Phones GPS

      Features:

• Low-profile - mounts directly to the stock gas tank
• Aluminum gas tank bracket with a 1 inch rubber ball
• A series of segmented holes to fit a variety of gas tank
• Short double socket arm:   Overall Length: 2.38" ; Socket-To-Socket Length: 2"
• X-Grip Holder for larger handheld devices with built-in 1" ball*
• Includes device tether**
• RAM adjustable socket system for the perfect viewing angles
• Constructed of powder coated marine grade aluminum, high strength composite, and stainless steel
• Installation hardware included***
• Holds up to 2 lbs.
• Made in the USA



**  Use of included tether or other safety strap for your device is strongly recommended with this mount configuration

Compatible with many bikes including Honda, KTM, Suzuki, Victory, & Yamaha***

       Included Hardware:

• Qty. 3 M6-1.0 x 25MM Socket Head Cap Screw
• Qty. 4 M5-0.8 x 45MM Socket Head Cap Screw
• Qty. 3 M5-0.8 x 35MM Socket Head Cap Screw
• Qty. 3 M5-0.8 x 25MM Socket Head Cap Screw
• Qty. 3 M5-0.8 x 20MM Socket Head Cap Screw
• Qty. 3 M5-0.8 x 16MM Socket Head Cap Screw
• Qty. 4 M5 Stainless Steel Flat Washer
• Qty. 3 M6 Stainless Steel Flat Washer


*** To ensure proper fit use the measuring guide.

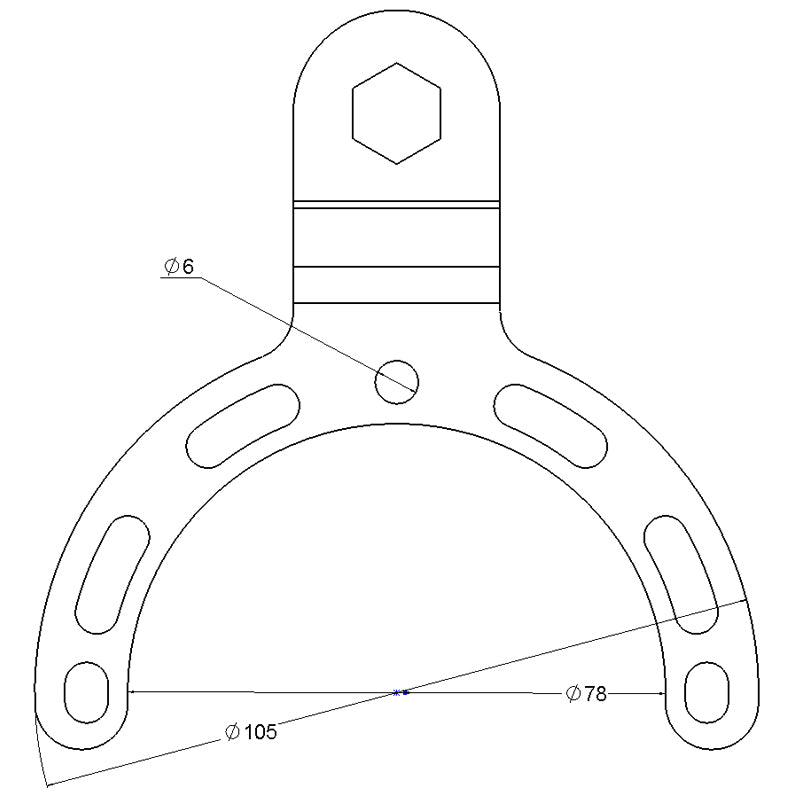

Tank bolts distance, for this part will be 3.5" (see diagram)



* Cases add to the size of your device so if using one measure your device with the case on it to determine fit



Fits Devices Within Dimensions Below:

• Width Range: 1.75" - 4.5"
• Depth Range: .875" max



Compatible Devices(Partial List):



Apple

• iPhone 6s Plus
• iPhone 7 Plus
• iPhone 8 Plus
• iPhone Xs Max
• iPhone 11 Pro Max
• iPhone 12 Pro Max
• iPhone 13 Pro Max
• iPhone 14 Plus
• iPhone 14 Pro Max
• iPhone 15
• iPhone 15 Plus
• iPhone 15 Pro Max



Blackberry

• Evolve X



Blackview

• BV9900
• BV9900 Pro



Cat

• S42
• S62
• S62 Pro



Garmin

• Drive 50
• Drive 51 LM
• Drive 52
• Drive 61 LM
• DriveSmart 51 LMT-S
• DriveSmart 61 LMT-S
• DriveTrack 71
• Nuvi 2788LM
• RV 660LMT
• RV 770 LMT-S



Google

• Pixel 2 XL
• Pixel 3 XL
• Pixel 3a XL
• Pixel 7 Pro

HTC

• Bolt
• U Ultra



Huawei

• Mate 20 X



Kyocera

• DuraSport 5G



LG

• Fiesta 2 LTE
• Fiesta LTE
• G8S ThinQ
• Harmony
• Stylo 2 V
• Stylo 3
• Stylo 3 Plus Titan
• Stylo 4
• V20
• V50 ThinQ
• X charge
• X venture



Magellan

• TR5
• TR7



Motorola

• moto e4 plus
• moto g4
• moto z2
• moto z2 play
• moto z3



Rand

• McNally Road Explorer 5
• McNally TND 540



Razer

• Phone 2

Samsung

• Galaxy A7
• Galaxy A7 (2017)
• Galaxy A7 (2018)
• Galaxy A8
• Galaxy A8 (2016)
• Galaxy A9 (2016)
• Galaxy A9 Pro (2016)
• Galaxy A9 (2018)
• Galaxy A70
• Galaxy A80
• Galaxy A90 5G
• Galaxy C7
• Galaxy C7 Pro
• Galaxy C9 Pro
• Galaxy E7
• Galaxy Grand Neo Plus
• Galaxy J7
• Galaxy J7 Max
• Galaxy J7 V
• Galaxy Note 5
• Galaxy Note 10 Plus
• Galaxy Note20 Ultra
• Galaxy On7
• Galaxy S10 5G
• Galaxy S8
• Galaxy S8 Active
• Galaxy S21 5G
• Galaxy S21+ 5G
• Galaxy S21 Ultra 5G
• Galaxy S22 Ultra 5G
• Galaxy S23+
• Galaxy S23 Ultra

Sonim

• RS60



Sony

• Xperia C4
• Xperia L2
• Xperia XA Ultra
• Xperia XA1 Ultra
• Xperia XA2 Ultra
• Xperia XZ Premium



Brand: RAM Mounts
Part number: RAM-B-410-A-UN10BU
Warranty: Manufacturer's lifetime warranty
